Inicio/Tienda/Suministros de laboratorio/Cromatografía/Cromatografía de capa delgada (TLC, HPTLC)/Placas de cromatografía de capa delgada (TLC)

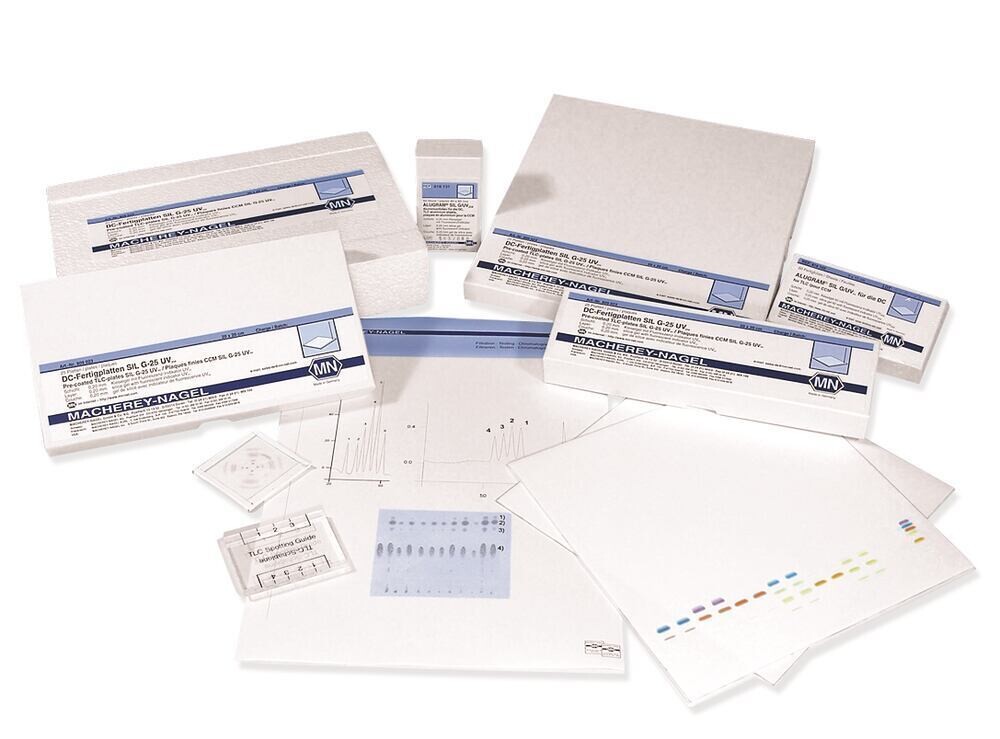

Placas TLC ALUGRAM® Xtra SILGUR / UV254 con gel de sílice estándar 60 y zona de concentración, 10 x 20 cm, 20 pieza(s)

Placas TLC ALUGRAM® Xtra SILGUR / UV254 con gel de sílice estándar 60 y zona de concentración, 10 x 20 cm, 20 pieza(s)

REF 1HAK.1
€ 88,22
Disponible
1
Guardar este producto para más tarde
Placas TLC ALUGRAM® Xtra SILGUR / UV254 con gel de sílice estándar 60 y zona de concentración, 10 x 20 cm, 20 pieza(s)
Información del producto
Código hs: 38229000
EAN: 8721028178015
Marca: Macherey-Nagel
Material: aluminium with silica gel 60, with fluorescence indicator.

  • Specific surface: approx. 500 m2/g
  • Medium pore width: 60 Å
  • Specific pore volume: 0,75 ml/g
  • Particle size: 5-17 µm

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!



TLC Plates ALUGRAM® Xtra SILGUR / UV254 with Standard Silica Gel 60 and concentration zone

Technical Information
Plate format 10 x 20 cm
Material aluminium
Modification Unmodified silica gel (SiOH)
Fluorescent indicator yes
Separation principle Normal phase (NP)
Phase Xtra SILGUR
Particle size 5-17 µm
Particle type Fully porous particles (FPP)
Pore size 60 Å
Pore volume 0.75 ml/g
pH stability 2,0-8,0
Recommended application(s) Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Steroids, Sweeteners, Vitamins

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!


Thin Layer Chromatography (TLC)

Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).

Advantages of thin layer chromatography:

  • Higher sample throughput in less time
  • Suitable for screening tests
  • Pilot process for HPLC
  • The ready-to-use TLC layer functions as a data storage device for separation results
  • The separated substances can be used later for further analysis (e.g. IR, MS)
  • By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient

Mostrar más
