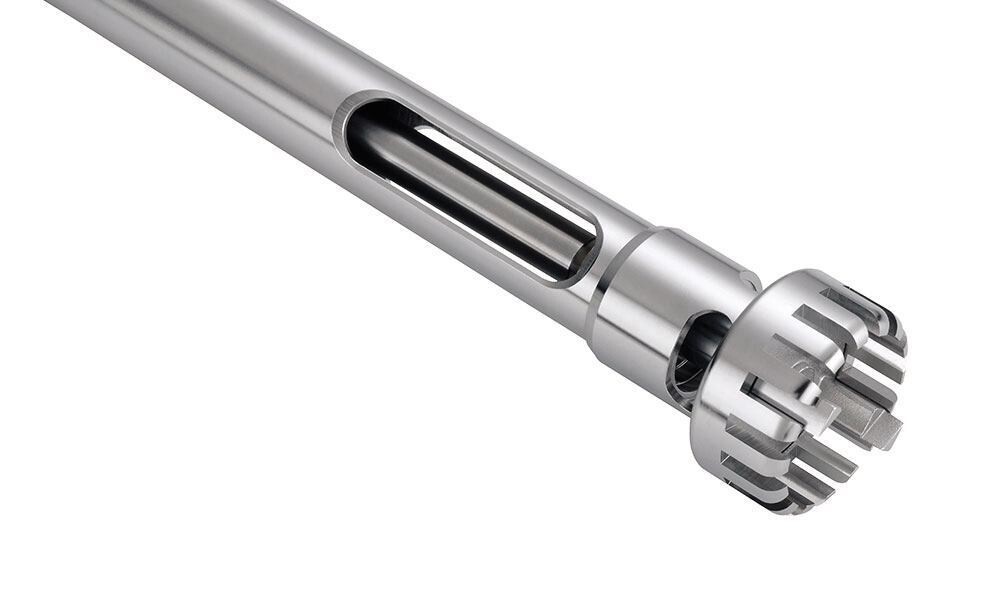

Type | S 50 N - G 45 G |
Working range | 0.5 to 20 l |
Ø Stator | 45 mm |
Ø Rotor | 36 mm |
Gap width between stator and rotor | 0.5 mm |
Materials in contact with product | PTFE, AISI 316L |
Temperature range | to +180 °C |
Ultimate fineness, emulsions | 40-100 µm |
Ultimate fineness, suspensions | 10-30 µm |
