Sistema de vacío PC 3000 VARIO select serie PC 3003 VARIO select, 1 pieza
REF 1EN1.1
€ 10 588,07
Disponible
1
Guardar este producto para más tarde
Sistema de vacío PC 3000 VARIO select serie PC 3003 VARIO select, 1 pieza
Información del producto
Código hs: 84141089
EAN: 8721028082886
Marca: Vacuubrand
Optimal solution for chemical processes requiring a precise vacuum, such as rotary evaporation, vacuum drying or vacuum concentration, by combining the speed-controlled VARIO chemical diaphragm pump and VACUU·SELECT vacuum controller.
- Uncompromising chemical version: Excellent chemical resistance throughout from the suction side to the pressure side
- Precise and efficient vacuum control via the pump speed (VARIO technology)
- Vacuum controller with graphical user interface and predefined vacuum processes for all standard laboratory applications
- Automatic boiling point detection and vacuum adaptation for short process times
- Application, required vacuum and other parameters can also be individually configured and controlled
- Very quiet and low vibration operation
- Excellent environmental compatibility through low energy consumption, extended maintenance intervals and efficient solvent recovery
- Suction-side separator made of glass with protective coating retains particles and droplets, very compact pressure-side emission condenser enables almost 100% solvent recovery
- Interfaces for remote monitoring, remote control, data transfer (export/import), software updating

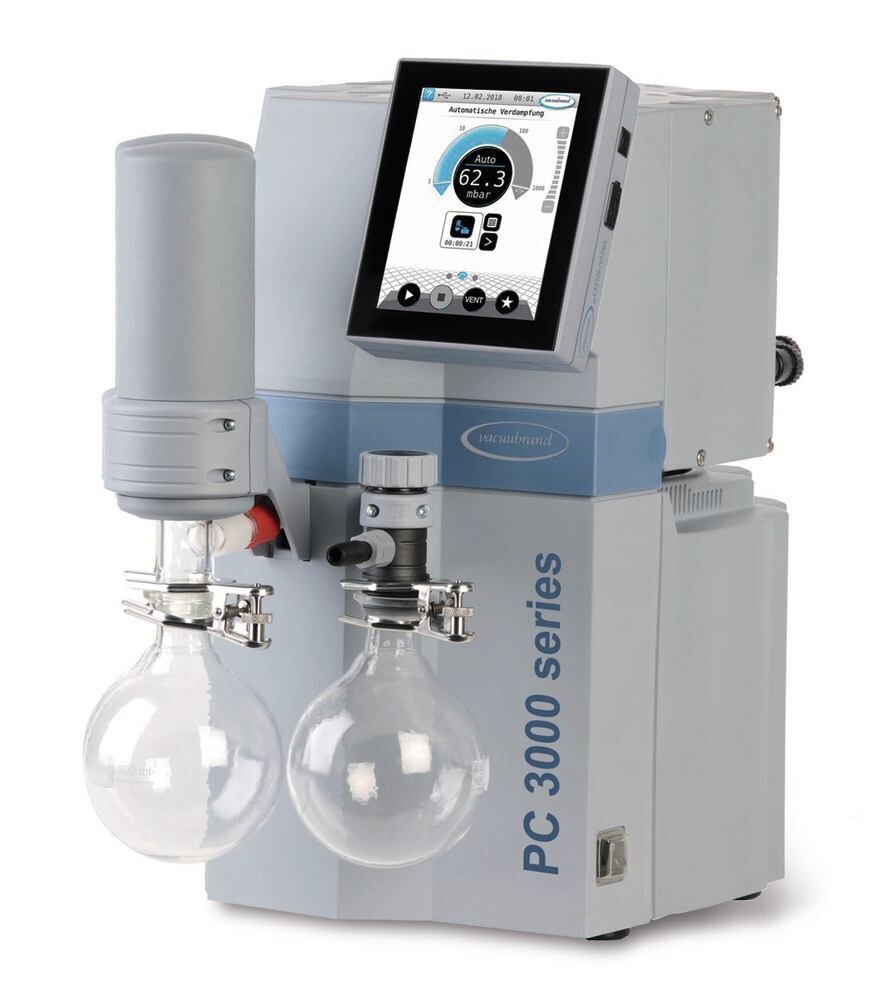

Vacuum system PC 3000 VARIO select series PC 3003 VARIO select
Ideal for high boilers and low evaporation temperatures due to the particularly low end vacuum.
Delivery incl. chemical-resistant diaphragm pump, vacuum controller, emission condenser, separator, round flask and hose connections.
Technical Information
| Type | PC 3003 VARIO select |
| System | PC 3003 VARIO select |
| Suction capacity (l/min) | 47 |
| End vacuum (abs.) | 0,6 mbar |
| End vacuum abs. with gas ballast | 1,5 mbar |
| Overpressure | 0,1 bar |
| Inlet connection | for hose inner Ø 8 - 10 mm |
| Outlet connection | for hose inner Ø 8 - 10 mm |
| Ambient temperature | +10 - +40 °C |
| Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE sandwich valves: Perfluoroelastomer (FFKM) cylinder wiring/hose nozzles: PTFE, ETFE, ECTFE |
| Port | USB type A, LAN |
| Motor power | 530 W |
| L x W x H | 419 x 243 x 457 mm |
| Weight | 21,1 kg |
| Mains connection | 230 V, 50/60 Hz |
