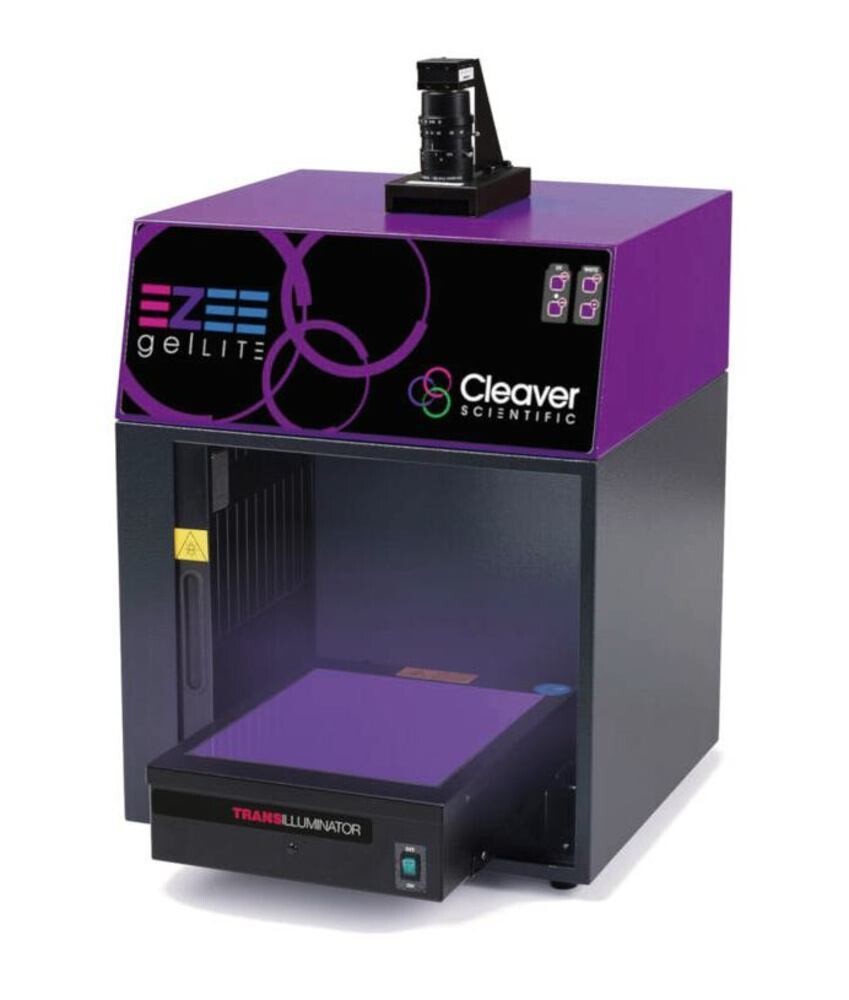

Sistema di documentazione su gel gelLITE, transilluminatore UV e convertitore di luce bianca 1 pz
Codice articolo 1Y4L.1
€ 7 575,55
Disponibile
1
Salva questo articolo per dopo
Sistema di documentazione su gel gelLITE, transilluminatore UV e convertitore di luce bianca 1 pz
Dettagli del prodotto
Codice SA: 90275000
Marca: Cleaver Scientific
Compact documentation system for imaging of agarose and PAGE gels.
The gelLITE gel ocumentation syste is an economical and compact system for imaging agarose and PAGE gels.
For easy and intuitive image acquisition, the integrated genePIX software enables you to choose from a selection of pre-programmed protocols. A live preview and manual lens adjustment allow the optimal settings to be achieved quickly. The image can be edited through the software to achieve perfect contrasts and optimise the image display.
The geneQUANT software features pre-loaded DNA ladder standards, enabling simplified quantification of samples. An automated report creation ensures that your results are perfectly documented.
Application:
- Fluorescence and methylene blue stained agarose gels
- Imaging of Coomassie-stained protein gels
- Quantification of DNA in agarose gels
- Autoradiograph Imaging
- Imaging of GFP-expressing plants
- Counting of colony plates
General properties:
- 3 MP camera
- Capture software: genePIX Image Capture
- Analysis software: geneQUANT Image Analysis
- Image storage formats: SGD, BMP, TIFF, JPEG
- UV safety switch (when opening the door)
Due to the 302 nm UV transilluminator, an optimal visualisation of your fluorescence-stained bands is possible. The white light converter also enables the high-contrast visualisation of Coomassie or silver-stained protein gels.
Gel documentation system gelLITE
Not a medical device / Not an IVD product
Technical Information
| Type | UV transilluminator and white light converter |
| Wavelength | 302 nm |
| Suitable for | Agarose gels, SDS-PAGE gels |
| Use | Gel documentation |
| Usable for | Documentation of agarose and PAGE gels, imaging of plants or bacterial colonies |
| Dynamic range | 3,6 - 4,8 |
| Focusing | 6,5 -39 |
| Number of pixels | 5 |
| Photosensor | 1/3 Inch |
| Data memory | USB, hard disk, network |
| Port | USB |
| Camera control | Manuel |
| Minimum PC requirements | Windows system USB connection |
| Recording software | genePIX Image Capture |
| Mains connection | 230 V, 50 Hz |
| Weight | 16 kg |
| Type (camera) | 3 MP camera, 12/16 bit |
| Lens type (camera) | Zoom lens |
| Resolution (camera) | 5 MP |
| Greyscale (camera) | 4,096/65,536 |
| Connection (camera) | USB 2.0 connection |
| Type (transilluminator) | UV light |
| Additional info (transilluminator) | Can be pulled out of darkroom |
| Dimensions (transilluminator) | 20 x 20 cm |
| Type (dark hood) | Darkroom with sliding door |
| Footprint (W × D) (dark hood) | 40 x 37.5 cm |
| Shutter (lens) | F1.4 |
