Sistema di aspirazione LABOPORT® SH serie H 840 G, 1 pezzo

Sistema di aspirazione LABOPORT® SH serie H 840 G, 1 pezzo

Codice articolo 1TAK.1
€ 3 851,03
Disponibile
1
Salva questo articolo per dopo
Sistema di aspirazione LABOPORT® SH serie H 840 G, 1 pezzo
Dettagli del prodotto
Codice SA: 84141089
EAN: 8721028082923
Marca: KNF

Available in various versions and therefore tailor-made for the individual requirements in the laboratory.
The core of the system is the LABOPORT® diaphragm vacuum pump (N 800 G-series): Compact, chemical-resistant and high-power. Even more environmentally friendly thanks to newly developed system components such as separator, high-performance condenser and/or innovative vacuum controller.

  • Integrated speed control for precise vacuum
  • Integrated gas ballast valve for high vapour and condensate resistance
  • Inner media-contact area ATEX-compliant according to “II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only”; for applications involving working with highly flammable solvents in closed systems. Not approved for ATEX zones

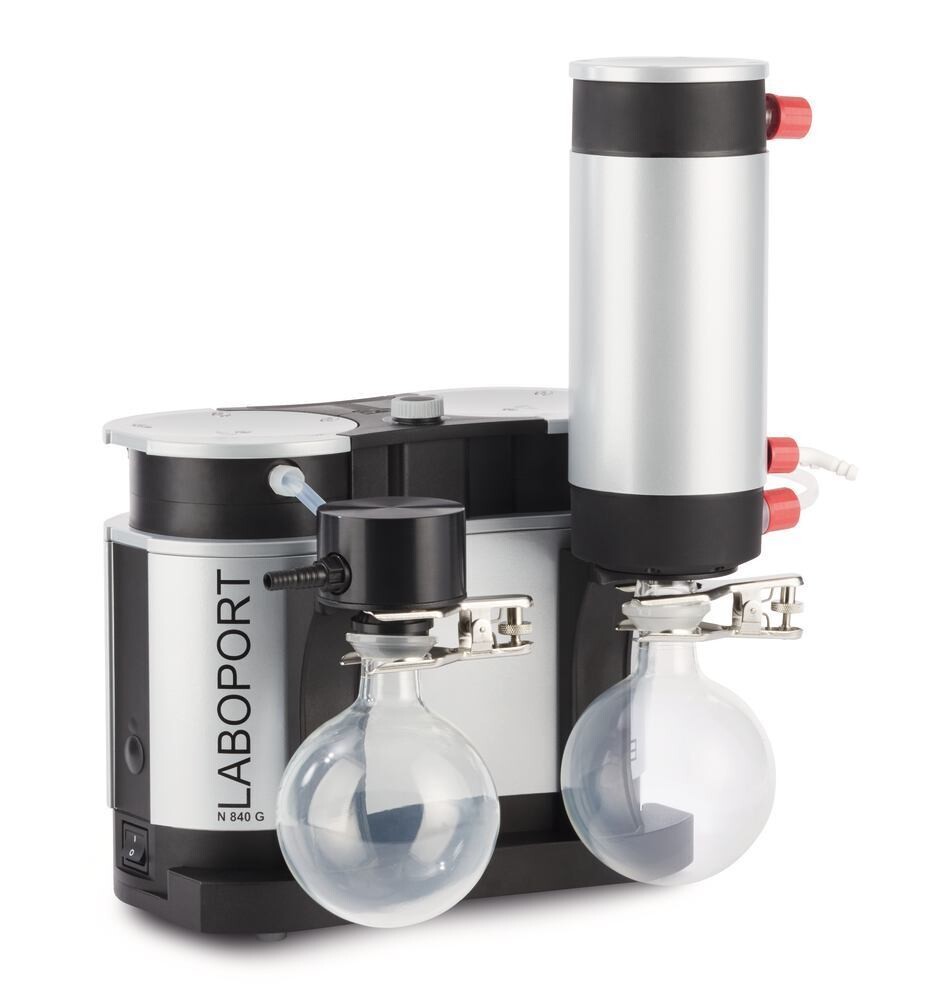

Vacuum system LABOPORT® SH series

Equipped with coated glass separator (suction side) and high-power condenser (pressure-side). Almost complete recovery of solvents that have very low boiling points possible thanks to cooling of the flow via the high-power condenser. For active environmental protection and reuse of the recovered solvents.



Delivery incl. base plate, suction-side separator and pressure-side high-power condenser.
Technical Information
Type SH 840 G
System SH 840 G
Version separator, condenser
Suction capacity (l/min) 34
End vacuum (abs.) 6 mbar
End vacuum abs. with gas ballast 17 mbar
Overpressure 0,1 bar
Connection for hose inner Ø 8-9.5 mm
Ambient temperature +5 - +40 °C
Materials in contact with media pump head: PTFE
diaphragms: PTFE-coated
valves: FFPM
hose nozzles: PVDF/FPM
W x D x H 340 x 274 x 416 mm
Weight 14,1 kg
Mains connection 100-240 V, 50/60 Hz
