Sistema di aspirazione MZ 2 serie MZ 2C NT +AK+EK, 1 pezzo
Codice articolo 1TCT.1
€ 3 837,23
Disponibile
1
Salva questo articolo per dopo
Sistema di aspirazione MZ 2 serie MZ 2C NT +AK+EK, 1 pezzo
Dettagli del prodotto
Codice SA: 84141089
EAN: 8721028082961
Marca: Vacuubrand
For evacuating, evaporating and pumping out gases and vapours in chemical, biological and pharmaceutical laboratories.
- Exceptional chemical and condensate resistance
- High delivery rate almost up to the achievable end vacuum
- Good end vacuum, even with open gas ballast valve
- Very quiet and low-vibration operation

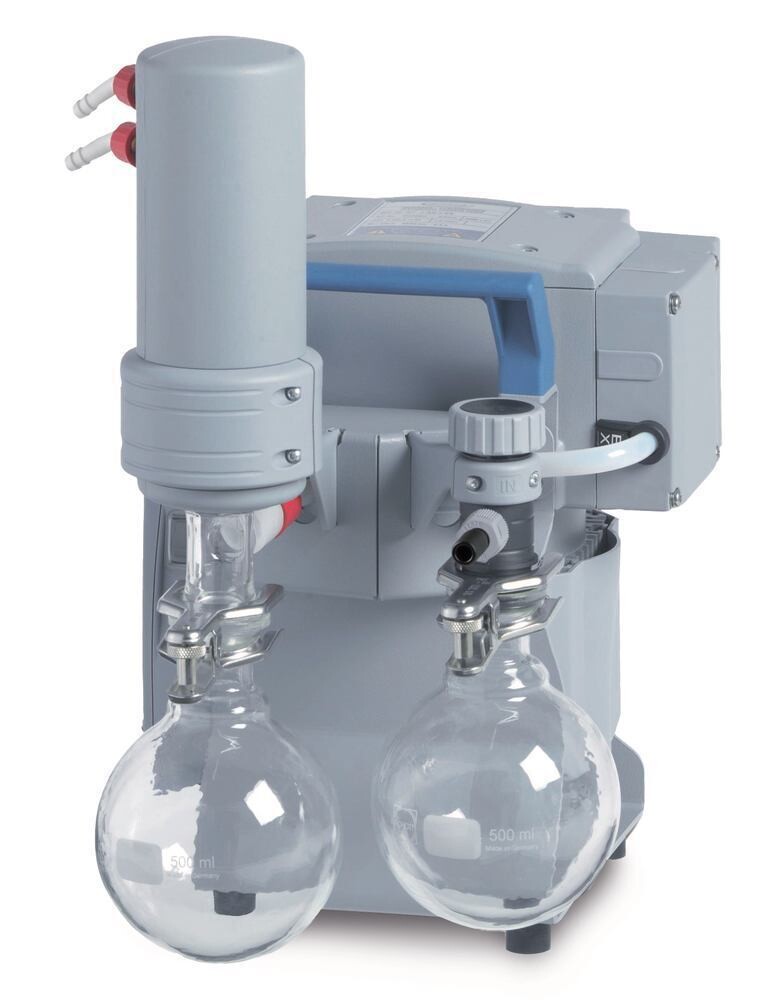

Vacuum system MZ 2 series MZ 2C NT +AK+EC
Application: rotary evaporators, vacuum concentrators and vacuum drying cabinets
- Suction-side separator (AK, glass with protective coating) keeps back particles and liquid droplets
- The pressure-side emission condenser (EC) is particularly effective and compact. It ensures almost complete recovery of solvents, enabling cost-effective re-use and actively contributing to environmental protection
Delivery incl. suction-side separator and pressure-side emission condenser.
Technical Information
| Type | MZ 2C NT +AK+EC |
| System | MZ 2C NT +AK+EC |
| Pump type | MZ 2C NT |
| Suction capacity (l/min) | 33 |
| End vacuum (abs.) | 7 mbar |
| End vacuum abs. with gas ballast | 12 mbar |
| Overpressure | 0,1 bar |
| Inlet connection | for hose inner Ø 8-10 mm |
| Outlet connection | for hose inner Ø 8-10 mm |
| Ambient temperature | +10 - +40 °C |
| Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: FFKM |
| Motor power | 180 W |
| L x W x H | 326 x 243 x 402 mm |
| Weight | 14,2 kg |
| Mains connection | 230 V, 50/60 Hz |
