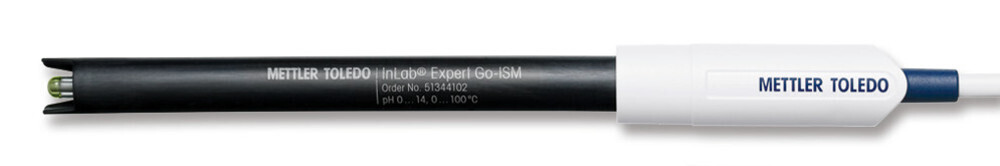

High-quality pH single-rod measuring cells for temperature-compensated measurements.
Thanks to the Intelligent Sensor Management (ISM®) system, all important data is stored in the sensor and automatically sent to ISM®-compatible measuring devices.
Wide range of applications including emulsions, suspensions, wastewater and solutions containing proteins and sulphides.
With IP67 protection for waterproof measurements with FiveGo™, Seven2Go™ and SevenGo Duo™ measuring devices.
PEEK shaft with excellent chemical and mechanical resistance for extreme strain.
The use of a solid polymer as a reference electrolyte means that there is no diaphragm which could become clogged.
With ARGENTHAL™ reference system for a long pH single-rod measuring cell service life: electrolyte with no silver ions, preventing the diaphragm becoming clogged with sulphides.
Type | InLab® Expert Go-ISM® |
Parameters | pH temperature |
pH range | 0 to 14 |
Operating temperature | 0 to +100 °C |
Diaphragm | Perforated |
Reference system | ARGENTHAL™ with Ag+ ion trap |
Electrolyte | Polymer |
Maintenance-free | yes |
Storage solution | 3 mol/l KCl |
Shaft length | 120 mm |
Ø Shaft | 12 mm |
Shaft material | PEEK |
Temperature sensor | NTC 30 k? |
ISM Technology | yes |
IP rating | 67 |
Connection | BNC (pH) Cinch (°C) |
