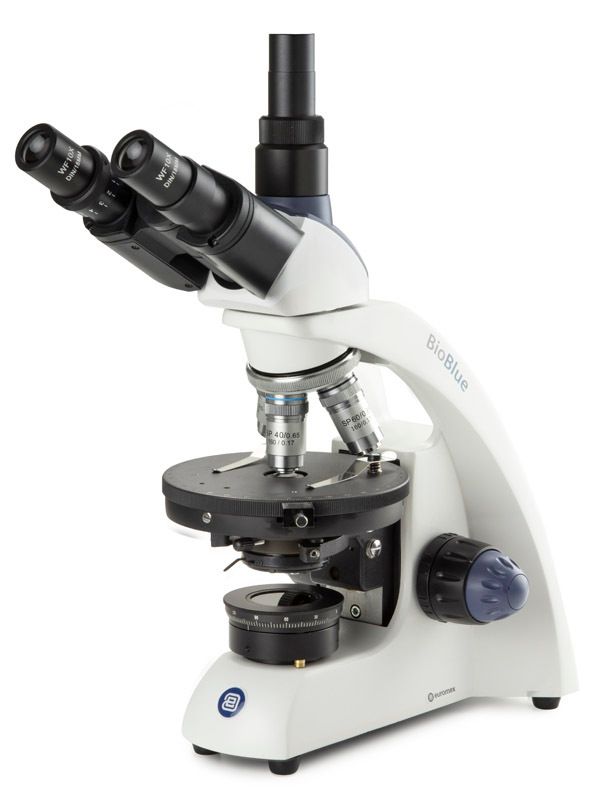

BioBlue BB.4243-P-HLED Triocular with 4x/10x/S40x/S60x objectives, polarization, without cross table

[tab name='Description']

The many years of experience of our optical engineers have contributed to the development and implementation of the best optical components on the BioBlue microscopes, with a guaranteed sharp image at any magnification up to consequence. The modern microscopes of the BioBlue series have been specially developed for education with extra attention to ergonomics. They fully comply with today's quality standards. The DIN WF 10x/18 mm eyepieces and the semi-plan achromatic, 45 mm DIN corrected objectives of the BioBlue models generate a clear and sharp image. When changing the magnification, the image remains in focus and centered. The 120 x 120 mm table and 130 x 130 mm table with 70 x 28 mm XY cross table ensure that the specimen can be positioned with a precision of 2 µm

Features

• Designed for education
< li>Monocular, binocular and trinocular models with WF10x/18 mm eyepiece(s)
• Models with integrated 5.0 MP CMOS camera
• Polarization models
• Equipped with APL (Anti-bacterial Protection Layer)
• Excellent price-quality ratio
• Revolver for four achromatic objectives
• Models with integrated XY cross table are available
< li>Coaxial coarse and fine adjustment with specimen protection
• Height-adjustable Abbe condenser with iris diaphragm and filter holder
• 1 W LED or 1 W NeoLED lighting
• Models without XY table have an internal power supply. No batteries
• Models with XY table have rechargeable AA batteries and external charging adapter
• Ergonomic tripod

[tab name='Technical Specifications']< /p>

OCULAR(S)
• Wide-angle WF 10x/18 mm eyepiece with pointing needle
• The eyepieces of the binocular and trinocular models are supplied without pointing needle

HEAD
• Monocular models have a tube at an angle of 45°
• The binocular and trinocular models have tubes at an angle of 30°
• The interpupillary distance is adjustable from 48 to 75 mm
• All binocular and trinocular models have a diopter adjustment ± 5 on the left tube
• All heads can be rotated 360°
• Models with an integrated USB-2 camera have a 5.0 MP 1/2" CMOS sensor with 2560 × 1920 pixels
• EcoBlue can also be supplied with a discussion head

REVOLVER
• Ball-bearing revolver for four lenses
• Polarization models are supplied with a fold-out analyzer

OBJECTIVES - 45 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 objectives
• The S40x, S60x and S100x oil immersion objectives have a spring mount
• The HLED-S models for polarization are supplied with semi-plan lenses

All lenses are treated against fungus and have an anti-reflection coating for maximum light output

(Photo: EC.7004, EC.7010, EC.7020, EC.7040, EC.7060, EC.7000)

< em>

FOCUS CONTROL< br>• Coaxial coarse and fine adjustment knobs, 200 divisions, 12.5 µm per division, 2.5 mm per rotation, 15 mm range
• Adjustable specimen security

TABLE
• 123 x 119 mm table with two object clamps (EC.9500 add-on 51 x 26 mm XY cross table is optionally available)
• 123 x 128 mm table with 70 x 27 mm integrated table, 360° rotatable and with two object clamps. Polarization models also have a swing-out analyzer on the lamp housing

CONDENSER
• Height-adjustable Abbe condenser NA 1.25 with iris diaphragm and filter holder
• Polarization models have a rack & pinion arrangement, other models have a helical arrangement

LIGHTING

• Monocular models are supplied with adjustable 1W LED lighting
• The binocular models have adjustable 1 W NeoLED lighting for maximum light output
• Models without an XY cross table are supplied without a rechargeable batteries and with an internal 100-240 V power supply
• Models with an (very similar to the halogen light spectrum).
With an integrated 100-240 V power supply, no batteries

DIGITAL MODELS

CAMERA
• All digital models have a USB 2 camera with a 5.0 MP 1/2" CMOS sensor
• Maximum resolution of 2560 × 1920 pixels, 24 bit color depth, up to 30 frames per second
• Digital models are equipped with ImageFocus Plus software, USB 2 cord and a 1mm/100 micrometer
• Camera warranty is 2 years

SOFTWARE
• Digital models come with ImageFocus Plus software for storing images and videos
• ImageFocus Plus software allows images to be saved in .jpg, .tif or .bmp formats and videos in .avi format
• In addition to taking photos and videos, the user can also take measurements on still and live images and annotate are added to still images.
• Compatible with Windows 7, 8, 10 and 11, both 32 and 64 bit computers
• A Mac OS version is also available
• Free updates are available on this website

ANTI-THEFT SLOT
On the back of the bScope there is a small slot that, in combination with a Kensington Security Lock, can protect the microscope against theft

STORAGE AND TRANSPORT

From left to right: AE.9918 - AE.9912

PACKAGING
• Complete with plug or mains adapter, white filter, dust cover, spare fuse, manual and 5 ml immersion oil for models with an S100x lens
• The EcoBlue models with an external power supply and xy table (EC.1x5x) are equipped with 3 rechargeable AA batteries
• Everything is packed in a polystyrene box
