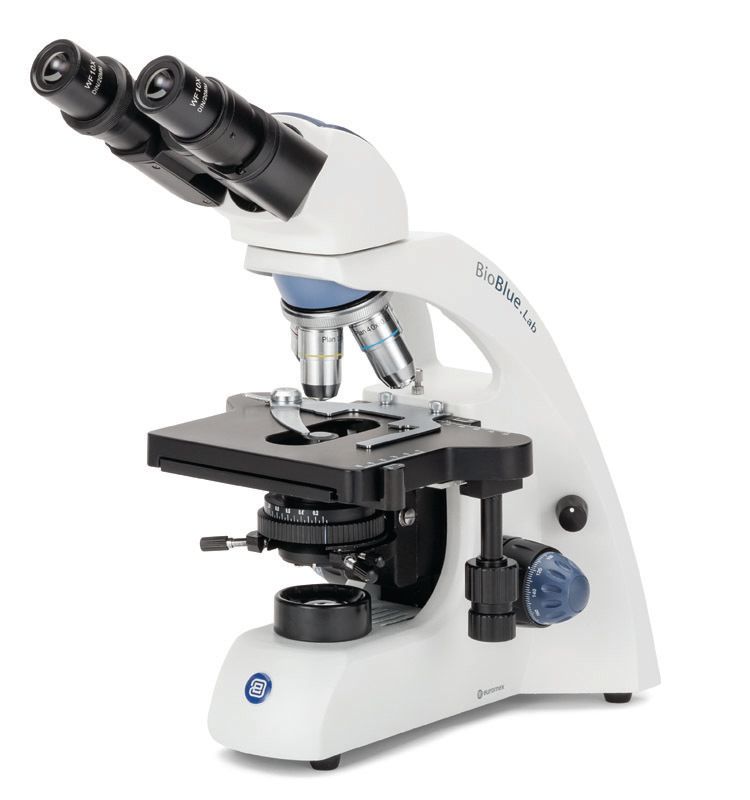

BioBlue.Lab BB.1152-PL Biocular with 4x/10x/S40x/S100x plan objectives and Rackless cross table

[tab name='Description']

The BioBlue.Lab, the flagship of the BlueLine, is an instrument that meets the highest expectations of microscope users. These ergonomic and user-friendly microscopes are specifically designed for education and various applications in laboratories. The 150 x 140 mm stage with 75 x 30 mm XY cross stage ensures that the specimen can be accurately positioned in smooth movements, which is highly appreciated in most demanding applications of cytology and histopathology. The BioBlue.Lab microscopes are highly functional and equipped with WF10x/20 mm eyepieces, plan or infinity corrected (IOS) plan 4x/10x/S40x/S100x objectives. All models have NeoLED lighting and are available in binocular or trinocular versions

Features:

• Binocular and trinocular models
• Inverted revolver for 4 lenses
• Plan and plan IOS objectives
• Finite and infinity corrected optical system
• Table with integrated cross stage
• NeoLED™ lighting
• Ergonomic handle

Model	BB.1152-PL
Version	Biocular
Maximum number of objectives	4
Quadruple revolver E-plan 4/10/S40/S100x	no
Quadruple revolver Plan 4/10/S40/S100x	yes
Quadruple revolver Plan IOS 4/10/S40/S100x	no
Five-fold revolver E-plan IOS 4/10/S40/S100x	no
Five-fold revolver Plan IOS 4/ 10/S40/S100x	no
Köhler NeoLED	no
2-position ergo head	no
NeoLED	yes

[tab name='Technical Specifications']

OCULARS
Wide-angle WF 10x/20 mm eyepieces

HEAD

• Binocular and trinocular models have 30° angled tube of Ø 30 mm
• The adjustable interpupillary distance is between 48 and 75 mm
• All models have a diopter adjustment of ±5 on the left tube
• All heads can be rotated 360° and secured with a screw
• The trinocular head has a fixed 50:50 distribution of light between the eyepieces and photo tube, and generates an upright image

REVOLVER
Ball-bearing inverted revolver for four objectives

OBJECTIVES - 45 MM PARFOCAL

• BioBlue.Lab microscopes are supplied with plan, plan IOS, plan phase or plan phase IOS objectives
• Optional 20x/0.40 and S60x/0.85 objectives are also available
• The S40x, S60x and S100x oil immersion lenses have a spring mount

All lenses are treated against fungus and have an anti-reflection coating for maximum light output

FOCUS CONTROL

• Coaxial coarse and fine adjustment knobs with 200 divisions. Precision of 1.5 μm per division, 0.3 mm per rotation
• Total reach of approximately 28 mm
• Supplied with adjustable specimen protection to prevent damage to objectives and specimens, and friction control on the coarse adjustment

TABLE
150 x 140 mm table with 'rackless' 75 x 30 mm XY cross table

CONDENSER

< li>Height-adjustable NA 1.25 Abbe condenser with iris diaphragm and filter holder. Supplied with white filter.
• The height-adjustable NA 1.25 Zernike phase contrast set with PLPHi objectives 10/20/40/100x oil, rotating disk with 4 annuli, alignment telescope and green filter. Bright field observation with phase contrast condenser is also possible. This can be done by choosing the position "BF" on the Zernike disc condenser



LIGHTING



All models come with adjustable 3 W NeoLED™ lighting for more light output.
Internal 100-240 Vac power supply

WEIGHT
The weight of the BioBlue.Lab is approximately 5.5 kg

STORAGE AND TRANSPORT



From left to right: BB.9900 - AE.9919 - AE.9916

ANTI-THEFT SLOTH
On the back of the microscope there is a small slot that, in combination with a Kensington security lock, can protect the microscope against theft

PACKAGING


Complete with plug, dust cover, spare fuse, manual and 5 ml immersion oil for models with an S100x lens. Everything is packed in polystyrene packaging
