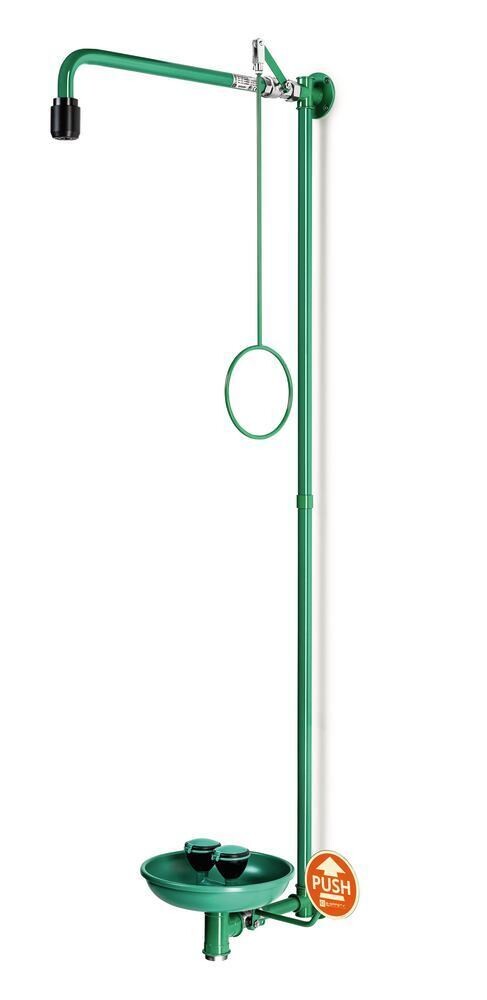

Combination emergency shower Eye shower with collection tray, 1 piece
SKU 1T86.1
€ 1 328,56
In stock
1
Save this product for later
Combination emergency shower Eye shower with collection tray, 1 piece
Product Details
HS code: 84818099
EAN: 8721028209412
Brand: B-Safety
DVGW-tested and approved. Acc. to DIN EN 15154-1:2006, DIN 15154-5:2019 and ANSI Z 358.1-2009.
- Application through wall flange, surface-mounted supply line
- With top and bottom water connection ¾? internal thread for installation in circulation lines
- Stable design due to robust brass body
- Chemical-resistant powder coating
- Automatic flow regulator
- Large maintenance-free ball valve for high flow rates (50 l/min at 1.5 bar)
- Triggered through non-self-closing pull rod valve
- Large, easy-to-operate pull rod with steel ring handle
- High-performance shower head made of chemical-resistant plastic, with improved spray pattern, resists corrosion, as limescale-resistant and maintenance-free as possible, very tough, self-draining
- Quick installation system ¾? as plug nipple made of stainless steel, for quick installation on site
- 1.5 to 3 bar water pressure application range
- Water connection ¾? internal thread
- Total length: 1500 mm
- Projection: 625 mm
- Pull rod length: 700 mm
Combined emergency shower Eye shower with collection basin
- Collection basin made of stainless steel, Ø 275 mm
- With PUSH lever operation
- Lever length 240 mm
- Photoluminescent acc. to DIN 67510
- Drain connection 1 1/4? external thread
- Wide-spray, high-power spray heads, with plastic spray plate, limescale-resistant, incl. rubber protection and tightly closing dust cover with folding mechanism
- Automatic flow regulator 14 l/min for a standard spray pattern
- Working range of 1 to 3 bar flow pressure
- Attachment height 810 mm (±100 mm)
Delivery incl. information sign for emergency body shower according to DIN EN ISO 7010 and ASR A1.3, self-adhesive PVC film, 150 x 150 mm.
Technical Information
| Mounting | Wall, surface-mounted |
