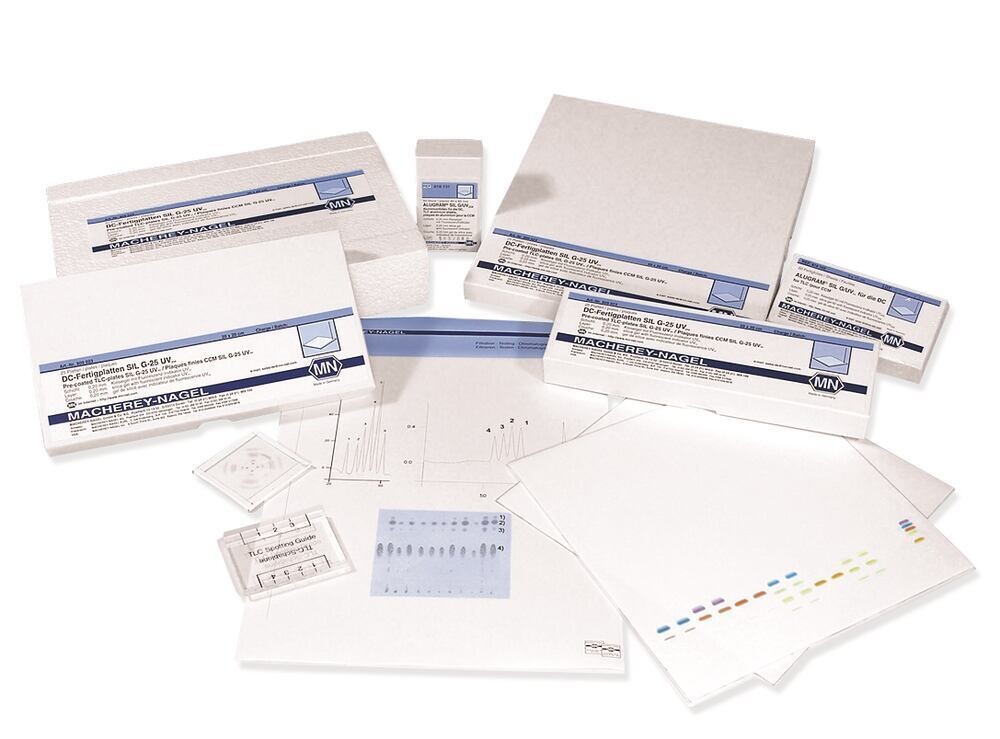

TLC Plates ALUGRAM® Xtra SIL G / UV254, 10 x 20 cm, 20 Piece(s)
SKU 3878.1
€ 78,49
In stock
1
Save this product for later
TLC Plates ALUGRAM® Xtra SIL G / UV254, 10 x 20 cm, 20 Piece(s)
Product Details
HS code: 38229000
Material: Aluminium
EAN: 8721028177919
Brand: Macherey-Nagel
Material: aluminium with silica gel 60, with fluorescence indicator.
- Specific surface: approx. 500 m2/g
- Medium pore width: 60 Å
- Specific pore volume: 0,75 ml/g
- Particle size: 5-17 µm
Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!
TLC Plates ALUGRAM® Xtra SIL G / UV254
Silica gel 60
Improved binder system for enhanced cutting and wettability.
The ready-to-use foils are produced with a special, highly polymeric binder, which is resistant towards almost all organic solvents and aggressive visualisation reagents. It is also completely stable in pure aqueous eluents.
Properties:
- Easy cutting of foils, no flaking of silica
- Outstanding wettability, precise colourisation even with 100 % aqueous eluents
- Excellent separation efficiency and reproducibility from lot to lot
Technical Information
| Plate format | 10 x 20 cm |
| Material | aluminium |
| Modification | Unmodified silica gel (SiOH) |
| Fluorescent indicator | yes |
| Separation principle | Normal phase (NP) |
| Phase | SIL G |
| Particle size | 5-17 µm |
| Particle type | Fully porous particles (FPP) |
| Specific surface according to BET | 500 m²/g |
| Pore size | 60 Å |
| Pore volume | 0.75 ml/g |
| pH stability | 2,0-8,0 |
| Recommended application(s) | Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Normal phase (NP), Patulin, Steroids, Sweeteners, Vitamins |
Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!
Thin Layer Chromatography (TLC)
Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).
Advantages of thin layer chromatography:
- Higher sample throughput in less time
- Suitable for screening tests
- Pilot process for HPLC
- The ready-to-use TLC layer functions as a data storage device for separation results
- The separated substances can be used later for further analysis (e.g. IR, MS)
- By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient
