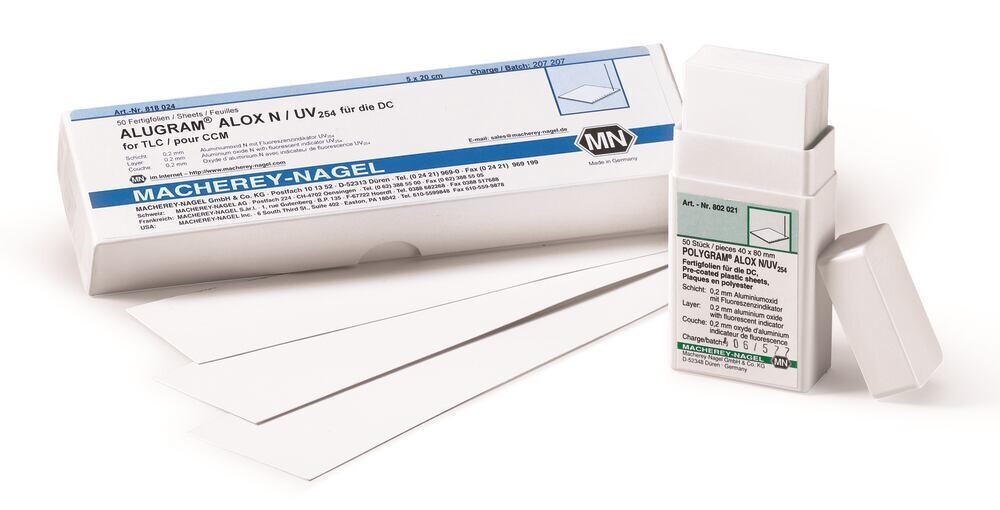

TLC Plates POLYGRAM® ALOX N / UV254, 20 x 20 cm, 25 Piece(s)
SKU N741.1
€ 169,12
In stock
1
Save this product for later
TLC Plates POLYGRAM® ALOX N / UV254, 20 x 20 cm, 25 Piece(s)
Product Details
HS code: 38229000
EAN: 8721028178138
Brand: Macherey-Nagel
Material: polyester with aluminium oxide, with fluorescence indicator.
Aluminium oxide (ALOX)
- Specific surface: approx. 200 m2/g
- Indicator: manganese-activated zinc silicate
- Mean pore width: 60 Å
- Inert organic binder
Tip: We recommend to activate aluminium oxide layers before use by heating at 120 °C for10 minutes.
Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!
TLC Plates POLYGRAM® ALOX N / UV254
Technical Information
| Plate format | 20 x 20 cm |
| Layer thickness | 0.2 mm |
| Material | polyester |
| Modification | Aluminium oxide layer |
| Fluorescent indicator | yes |
| Phase | ALOX N |
| Recommended application(s) | Terpenes, Alkaloids, Steroids, Aliphatic and aromatic compounds |
Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!
Thin Layer Chromatography (TLC)
Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).
Advantages of thin layer chromatography:
- Higher sample throughput in less time
- Suitable for screening tests
- Pilot process for HPLC
- The ready-to-use TLC layer functions as a data storage device for separation results
- The separated substances can be used later for further analysis (e.g. IR, MS)
- By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient
