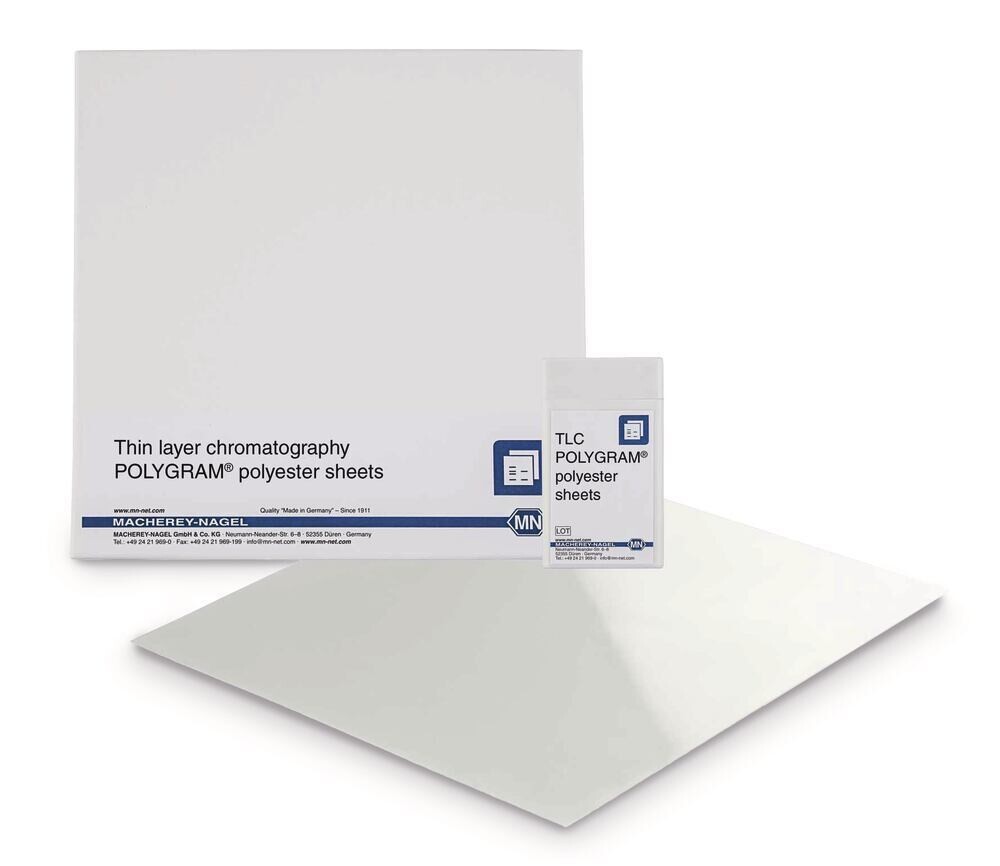

TLC Plates POLYGRAM® with Polyamide-6, 5 x 20 cm, 50 Piece(s)

TLC Plates POLYGRAM® with Polyamide-6, 5 x 20 cm, 50 Piece(s)

SKU 1P3X.1
€ 154,13
In stock
1
Save this product for later
TLC Plates POLYGRAM® with Polyamide-6, 5 x 20 cm, 50 Piece(s)
Product Details
HS code: 38229000
EAN: 8721028178268
Brand: Macherey-Nagel
Material: polyester with Polyamide-6.

Polyamide 6 (PA6, ε-polycaprolactame, Perlon, nylon 6)


Separation mechanism: hydrogen bonds to the amide groups of the polymer matrix as well as ion, dipole and electron donor/acceptor interactions



TLC Plates POLYGRAM® with Polyamide-6

Technical Information
Plate format 5 x 20 cm
Layer thickness 0.1 mm
Material polyester
Modification Polyamide 6 (PA6, ε-polycaprolactame, Perlon, nylon 6)
Fluorescent indicator no
Separation principle Normal phase (NP)
Phase Polyamide-6
pH stability 2,0-8,0
Temperature stability < 185 °C
Recommended application(s) Amino acids, Aromatic nitro compounds, Carboxylic acids, Natural compounds, Phenols

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!


Thin Layer Chromatography (TLC)

Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).

Advantages of thin layer chromatography:

  • Higher sample throughput in less time
  • Suitable for screening tests
  • Pilot process for HPLC
  • The ready-to-use TLC layer functions as a data storage device for separation results
  • The separated substances can be used later for further analysis (e.g. IR, MS)
  • By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient
