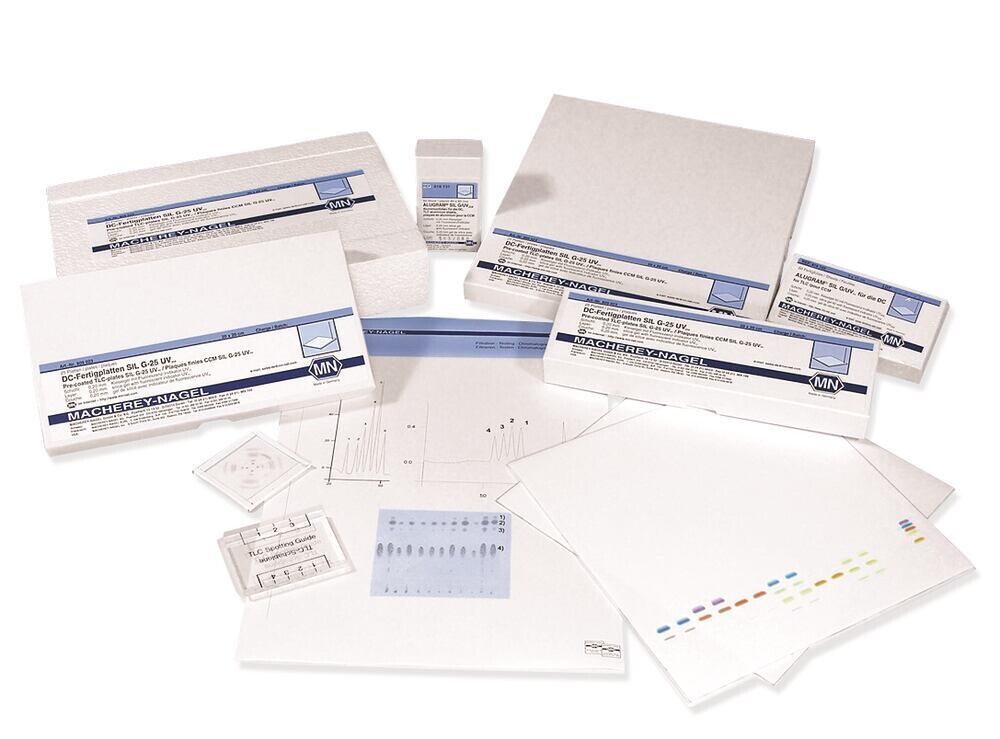

TLC Plates SIL G-25 / UV254, 10 x 10 cm, 25 Piece(s)
SKU K801.1
€ 88,22
In stock
1
Save this product for later
TLC Plates SIL G-25 / UV254, 10 x 10 cm, 25 Piece(s)
Product Details
HS code: 38229000
Material: Glass
EAN: 8721028178503
Brand: Macherey-Nagel
Material: glass with silica gel 60, with fluorescence indicator.
- Specific surface: approx. 500 m2/g
- Medium pore width: 60 Å
- Specific pore volume: 0,75 ml/g
- Particle size: 5-17 µm
Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!
TLC Plates SIL G-25 / UV254
Technical Information
| Plate format | 10 x 10 cm |
| Layer thickness | 0.25 mm |
| Material | glass |
| Modification | Unmodified silica gel (SiOH) |
| Fluorescent indicator | yes |
| Separation principle | Normal phase (NP) |
| Phase | SIL G |
| Particle size | 5-17 µm |
| Particle type | Fully porous particles (FPP) |
| Specific surface according to BET | 500 m²/g |
| Pore size | 60 Å |
| Pore volume | 0.75 ml/g |
| pH stability | 2,0-8,0 |
| Temperature stability | High |
| Recommended application(s) | Aflatoxins, Alkaloids, Amines, Amino acids, Analgetics, Antibiotics, Hormones, Marihuana compounds, Patulin, Steroids, Sweeteners, Vitamins |
Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!
Thin Layer Chromatography (TLC)
Although the principle of thin-layer chromatography is more than a century old, it did not make its breakthrough as an analytical method until about 50 years ago.
Thanks to the development of new sorbents and supports, as well as increasing instrumentation and automation, TLC has become a versatile separation method. It is used both in qualitative analysis and in quantitative analysis.
Applications range from simple manual separation processes in classic TLC to automated processes in HPTLC (high performance thin layer chromatography).
Advantages of thin layer chromatography:
- Higher sample throughput in less time
- Suitable for screening tests
- Pilot process for HPLC
- The ready-to-use TLC layer functions as a data storage device for separation results
- The separated substances can be used later for further analysis (e.g. IR, MS)
- By switching the mobile and the stationary phases, the separation process can be optimised quickly and cost-efficient
