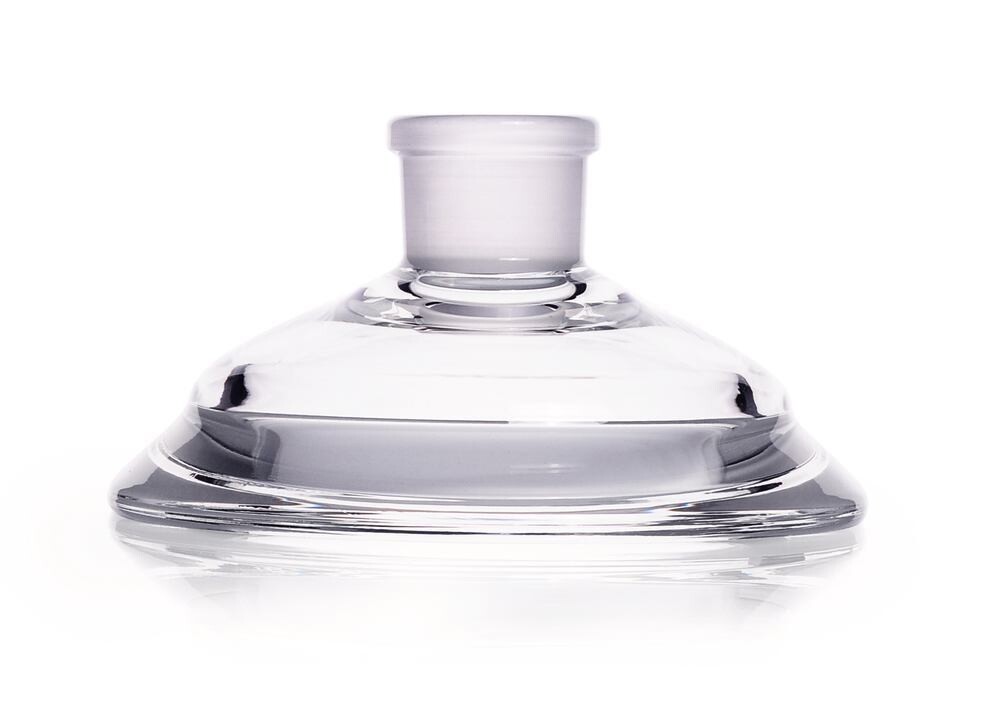

Flat flange lid DURAN® centre neck with NS, DN 100, 138 mm, Height, 76 mm, 1 Piece
SKU PL06.1
€ 169,06
In stock
1
Save this product for later
Flat flange lid DURAN® centre neck with NS, DN 100, 138 mm, Height, 76 mm, 1 Piece
Product Details
HS code: 70172000
Material: DURAN®-glass
EAN: 8721028142375
Brand: DWK Life Sciences
Joint 1: NS 29/32
Material: DURAN® glass, borosilicate glass 3.3. Autoclavable: yes.
Flat flange lid for closing flat flange vessels. Due to the standard ground joint, suitable for combination with other ground joint components (e.g. dropping funnels, coolers and stirrer shafts). Also suitable as a replacement lid for Witt filtration devices.
- For chemically and thermally demanding processes
- Pressure- and vacuum-resistant due to the geometry and the solid wall thickness
Note: at a maximum operating temperature of +250 °C and the respective permissible operating pressure, the temperature difference in the glass wall of the flat flange lid must not be more than 30 °C.
Flat flange lid DURAN® centre neck with NS
Technical Information
| Version | DN 100 |
| Outer flange Ø | 138 mm |
| Height | 76 mm |
| Max. working pressure | 1 bar |
| Centre neck with ground glass joints | 29/32 |
