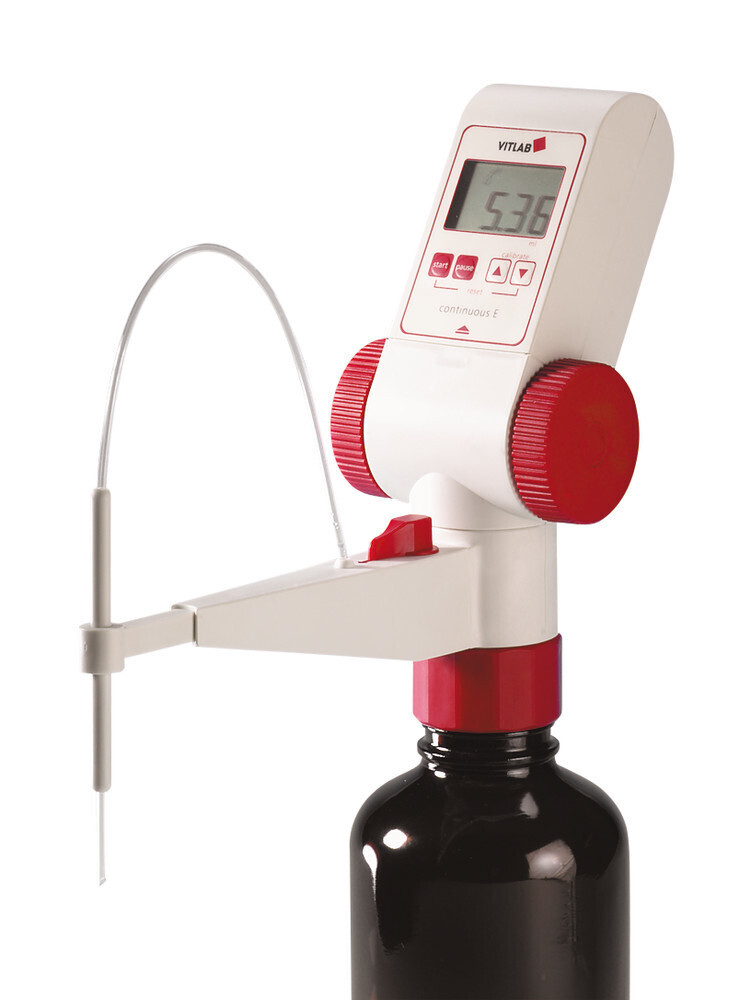

Pulse-free dispensing. Continuous delivery of desired volume without creating a reserve. Easy and fatigue-free operation of the control elements. Volume dispensed per turn of the handwheels: 2.5 ml (continuous E) or 5.0 ml (continuous RS).
Parts in contact with media:
borosilicate glass 3.3., FEP, ETFE, PFA, PTFE, platinum-iridium
Permissible conditions of use:
temperature +15 to +40 °C, vapour pressure up to max. 500 mbar, density 2.2 g/cm3
Type | Continuous E |
Volume | 2,5 ml |
Nominal volume | 25 ml |
Correctness | ±50 µl |
Variation coefficient | ±25 µl |
Operating temperature | +15 - +40 °C |
Adapter | GL 32, GL 38, S 40 |
Suction tube length | 200 - 350 mm |
Power supply | 2 x AAA 1.5 V batteries |
