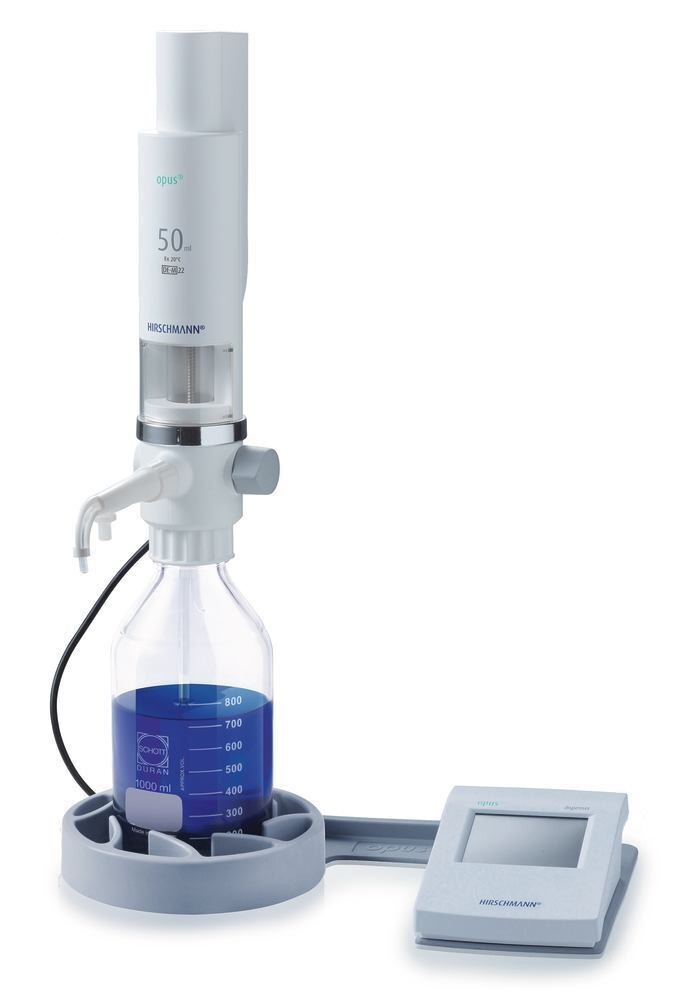

Digital dispenser opus® dispensers, 50 ml, 1 piece
SKU LK07.1
€ 2 729,57
In stock
1
Save this product for later
Digital dispenser opus® dispensers, 50 ml, 1 piece
Product Details
HS code: 84798997
Size: 50 ml
EAN: 8721028036735
Brand: Hirschmann
For motor-driven dosing directly from the lab bottle. Microprocessor-controlled piston stroke system guarantees maximum accuracy and precise, reproducible results.
Properties:
- Safe and easy handling via external touchscreen with clearly arranged menu keys; with quick-cal function for simple calibration of other temperatures or other media
- High media flexibility thanks to the highly-resistant, inert materials
- Media carrying parts are steam sterilisable (121 °C)
- Valve block with GL 45 thread
- Time-controlled serial dosing up to 9999 reruns, enables integration in automated process runs
- Methods memory for 9 different procedures
- Media feedback system for ventilation without loss of reagent
- Universal Luer connection for dry pipes, filters, etc.
- Can be battery- or mains-operated (battery not included in the delivery; please order separately)
- Stepper function for delivery of up to 10 different partial quantities
- Intake and draining speeds can be set
- 4 languages (G, E, F, S) integrated by default
- Optional system platform for stability, please order separately
Materials in contact with media:Borosilicate glass, PTFE, FEP, ECTFE, Hastelloy
Control panel:
- Touchscreen: 3.5″ with 320 x 240 pixel
- PC port: USB or RS 232
- Dimensions: W 110 x D 130 x H 55 mm
- Weight without battery: 230 g
Digital dispensers opus® dispensers
Delivery incl. thread adapter, intake hose, return hose, output unit dispenser, valve assembly spanner, touchscreen control, power supply unit, data power cable, quality certificate according to DIN EN ISO 8655.
Technical Information
| Version | 50 ml |
| Max. piston stroke | 50 ml |
| Volume range | 1,00-500 ml |
| Resolution | <2 µl |
| Correctness | 0,6 % |
| Variation coefficient | 0,2 % |
| Operating temperature | +4 - +40 °C |
| Weight | 660 g |
| W x D x H | 63 x 80 x 320 mm |
| Adapter | GL 32, GL 38, S 40 |
| Mains connection | 230 V, 50 Hz |
