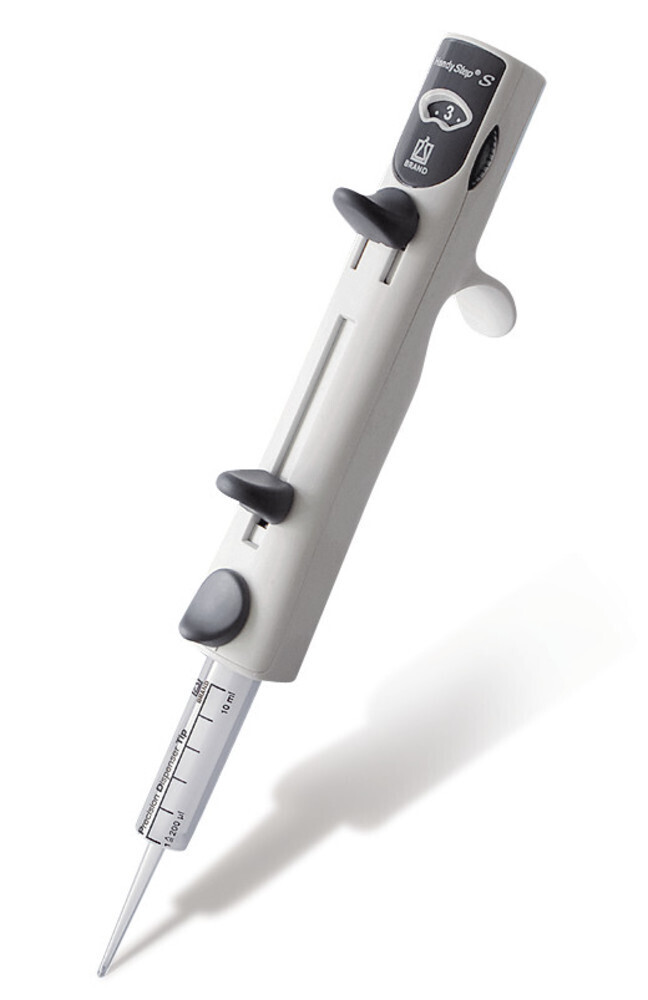

Dispenser pipette HandyStep® S, 1 piece
SKU EH21.1
€ 293,34
In stock
1
Save this product for later
Dispenser pipette HandyStep® S, 1 piece
Product Details
HS code: 84798997
EAN: 8721028037206
Brand: BRAND
Manual multi-dispenser for fast, repetitive dispensing of liquids. PD-Tips allow volumes of between 2 μl and 5 ml to be dispensed in up to 49 increments in a single filling without refilling. HandyStep® S and PD-Tips work according to the positive displacement principle. High viscosity, high density and high vapour pressure liquid media can be dispensed with extremely high precision. Direct displacement allows contamination-free operation since no aerosols are formed.
- Ergonomic design
- Stroke length setting wheel with nine positions
- Easy tip attachment - the PD-Tips are inserted straight from below
- Safe tip removal at the touch of a button - no need to touch the dispenser tips
- Easy-to-read display, no battery required
- Innovative plastics provide increased resistance to chemicals
- For use with PD-Tips, Combitips®, Combitips® plus, Ritips®, Repet-Tips, Encode™-Tips, DISTRITIPs S® and other compatible tips
- Operating temperature range: 15 to 40 °C
- Maintenance-free, factory-calibrated
- Includes a quality certificate
- DE-M approved
Technical specifications:
| PD-Tip size (ml) | Volume range (µl) | Correctness ≤ ±% Stroke setting = % of nominal volume |
Variation coefficient ≤% Stroke setting = % of nominal volume |
||||
| 1 = 2% | 3 = 6% | 5 = 10% | 1 = 2% | 3 = 6% | 5 = 10% | ||
| 0.1 | 2 - 10 | 4.0 | 2.4 | 1.6 | 6.0 | 3.0 | 2.0 |
| 0.5 | 10 - 50 | 2.5 | 1.5 | 1.0 | 2.5 | 1.5 | 1.0 |
| 1.0 | 20 - 100 | 2.5 | 1.5 | 1.0 | 2.0 | 1.2 | 0.8 |
| 1.25 | 25 - 125 | 2.5 | 1.4 | 0.9 | 2.0 | 1.1 | 0.7 |
| 2.5 | 50 - 250 | 1.8 | 1.1 | 0.7 | 1.5 | 0.9 | 0.6 |
| 5.0 | 100 - 500 | 1.8 | 1.1 | 0.7 | 1.5 | 0.9 | 0.7 |
| 10.0 | 200 - 1000 | 1.8 | 1.1 | 0.7 | 2.0 | 1.2 | 0.8 |
| 12.5 | 250 - 1250 | 1.8 | 1.1 | 0.8 | 3.2 | 2.0 | 1.4 |
| 25 | 500 - 2500 | 1.5 | 0.9 | 0.6 | 3.0 | 1.5 | 1.0 |
| 50 | 1000 - 5000 | 1.5 | 0.8 | 0.5 | 5.0 | 1.8 | 1.2 |
HandyStep S precision table® in combination with PD-Tips. Error limits refer to the set dispensing volume according to PD-Tip size, with the device, tip, environment and distilled water at a uniform temperature (20 °C) and with smooth operation. This test is performed according to DIN EN ISO 8655-5. The nominal volume is the maximum volume printed on the PD-Tip.
Dispenser pipette HandyStep® S
Not a medical device / Not an IVD product
Delivery incl. shelf/rack mount and three PD-Tips: 0.1, 1 and 10 ml.
Technical Information
| Version | manually |
| Designation | HandyStep® S |
