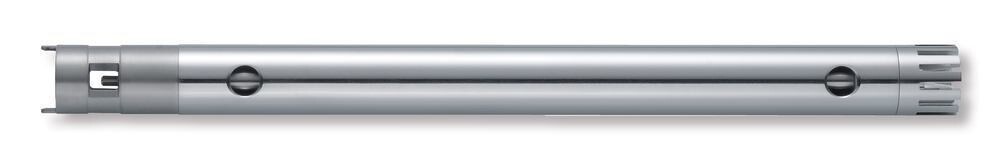

Type | S 18 N - 19 G |
Working range | 10 to 1500 ml |
Ø Stator | 19 mm |
Ø Rotor | 12.7 mm |
Gap width between stator and rotor | 0.25 mm |
Immersion depth | 35-170 mm |
Materials in contact with product | PTFE, AISI 316L |
Temperature range | to +180 °C |
Ultimate fineness, emulsions | 1–10 µm |
Ultimate fineness, suspensions | 10–50 µm |
