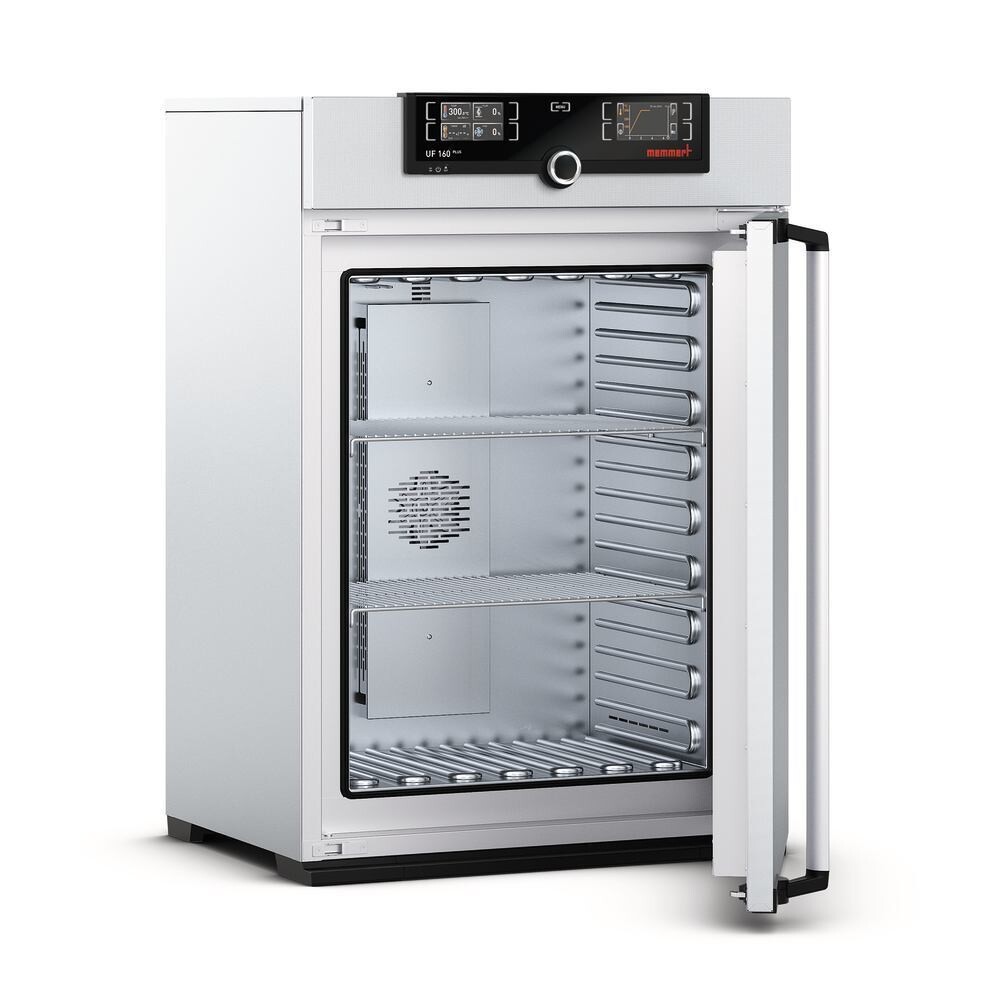

Drying oven Models UFplus with forced air movement (fan), 161 l, UFplus 160, 1 piece
SKU TY26.1
€ 4 385,93
In stock
1
Save this product for later
Drying oven Models UFplus with forced air movement (fan), 161 l, UFplus 160, 1 piece
Product Details
HS code: 84198998
EAN: 8721028079343
Brand: Memmert
Models: UN, UNplus, UF and UFplus
General features:
- Stainless steel interior (1.4301)
- Fully insulated stainless steel door (two-wing from size 450 upwards)
- Fresh air supply by electronically adjustable exhaust air flap
- Textured stainless steel housing
- Model sizes 450 and 750 with moveable and lockable rollers
- Interior depth minus 39 mm for devices with forced air circulation
- Depth plus door handle 56 mm
- Incl. factory calibration certificate valid for +160 °C
- Power supply for models 30 to 260: 230 V, 50/60 Hz, power supply for models 450 and 750: 400 V and 3 x 220 V, n/a 50/60 Hz
Other features:
- German, English, French and Spanish language options
- Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation
- “SetpointWAIT” function - process time does not start until the target temperature is reached
Drying cabinet Models: UFplus with forced air circulation (fan)
- Operating temperature range from 10 °C above room temperature to 300 °C
Setting temperature from 20 to 300 °C
Setting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K - Two graphical TFT displays with touchscreen for operation and displaying temperature, program runtime, air damper position and graphical display of programme flow
- Integrated data logger with 10-year memory
- Display of recorded log data (max. 10,000 values correspond to approx. 1 week) directly on the device
- Application-specific correction of the heat output distribution between the upper and lower heating groups within an adjustment range from -50% to +50%
- With Ethernet communication port for reading out log data as well as for transmitting and launching programs and online logging
- Definition of individual min./max. values for protection against excessive/insufficient temperatures
- USB port for installing programs and reading out the data logger incl. software (to create ramp programs and weekly programs)
- Quiet air turbine for air circulation mode (air turbine can be controlled and switched off)
Delivery incl. stainless steel grating (models 30 and 55: 1 grate, models 75 to 750: 2 grates). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Technical Information
| Type | UFplus 160 |
| Vol. | 161 l |
| Operating temperature | from 10 °C above room temperature to 300 °C |
| Inner width | 560 mm |
| Inner height | 720 mm |
| Inner depth | 400 mm |
| Outer width | 745 mm |
| Outer height | 1107 mm |
| Outer depth | 584 mm |
| Max. removable shelves | 8 |
| Power consumption | 3200 W |
| Temporal temp. variance | <±0,8 °C |
| Spatial temp. deviation | <±3,5 °C |
| Weight | 96 kg |
| Mains connection | 230 V, 50/60 Hz |
