Drying oven Models UNplus with natural air movement (convection), 161 l, UNplus 160, 1 piece

Drying oven Models UNplus with natural air movement (convection), 161 l, UNplus 160, 1 piece

SKU TY18.1
€ 3 831,67
In stock
1
Save this product for later
Drying oven Models UNplus with natural air movement (convection), 161 l, UNplus 160, 1 piece
Product Details
HS code: 84198998
EAN: 8721028079268
Brand: Memmert

Models: UN, UNplus, UF and UFplus

General features:
  • Stainless steel interior (1.4301)
  • Fully insulated stainless steel door (two-wing from size 450 upwards)
  • Fresh air supply by electronically adjustable exhaust air flap
  • Textured stainless steel housing
  • Model sizes 450 and 750 with moveable and lockable rollers
  • Interior depth minus 39 mm for devices with forced air circulation
  • Depth plus door handle 56 mm
  • Incl. factory calibration certificate valid for +160 °C
  • Power supply for models 30 to 260: 230 V, 50/60 Hz, power supply for models 450 and 750: 400 V and 3 x 220 V, n/a 50/60 Hz

Other features:
  • German, English, French and Spanish language options
  • Digital timer (adjustable from 1 min to 99 d, 23 h) or continuous operation
  • “SetpointWAIT” function - process time does not start until the target temperature is reached


Drying cabinet Models: UNplus with natural air circulation (convection)

  • Operating temperature range from 5 °C above room temperature to 300 °C
    Setting temperature from 20 to 300 °C
    Setting accuracy up to 99.9 °C: 0.1 K, from 100 °C: 0.5 K
  • Two graphical TFT displays with touchscreen for operation and displaying temperature, program runtime, air damper position and graphical display of programme flow
  • Integrated data logger with 10-year memory
  • Display of recorded log data (max. 10,000 values correspond to approx. 1 week) directly on the device
  • Application-specific correction of the heat output distribution between the upper and lower heating groups within an adjustment range from -50% to +50%
  • With Ethernet communication port for reading out log data as well as for transmitting and launching programs and online logging
  • Definition of individual min./max. values for protection against excessive/insufficient temperatures
  • USB port for installing programs and reading out the data logger incl. software (to create ramp programs and weekly programs)


Delivery incl. stainless steel grating (models 30 and 55: 1 grate, models 75 to 750: 2 grates). Please note: additional transport costs apply for delivery to the place of use. We will be happy to inform you of these on request.
Technical Information
Type UNplus 160
Vol. 161 l
Operating temperature from 5 °C above room temperature to 300 °C
Inner width 560 mm
Inner height 720 mm
Inner depth 400 mm
Outer width 745 mm
Outer height 1107 mm
Outer depth 584 mm
Max. removable shelves 8
Power consumption 3200 W
Temporal temp. variance <±0,8 °C
Spatial temp. deviation <±4,5 °C
Weight 96 kg
Mains connection 230 V, 50/60 Hz
Show More
You May Also Like
(S)-3-((tert-Butoxycarbonyl)amino)-3-(4-fluorophenyl)propanoic acid, 95.0%, 1g
(S)-3-((tert-Butoxycarbonyl)amino)-3-(4-fluorophenyl)propanoic acid, 95.0%, 1g
(S)-3-((tert-Butoxycarbonyl)amino)-3-(4-fluorophenyl)propanoic acid, 95.0%, 1g
SKU F212787-1G
€ 52,80
4-Chloro-2-dimethylamino-benzonitrile, 5g
4-Chloro-2-dimethylamino-benzonitrile, 5g
4-Chloro-2-dimethylamino-benzonitrile, 5g
SKU F487672-5G
€ 792,00
5-[4-(2-methylpropyl)phenyl]-1H-pyrazole-3-carboxylic acid, 95.0%, 1g
5-[4-(2-methylpropyl)phenyl]-1H-pyrazole-3-carboxylic acid, 95.0%, 1g
5-[4-(2-methylpropyl)phenyl]-1H-pyrazole-3-carboxylic acid, 95.0%, 1g
SKU F525046-1G
€ 712,80
N4,N4-Dimethylpyridine-2,4-diamine, 95%, 250mg
N4,N4-Dimethylpyridine-2,4-diamine, 95%, 250mg
N4,N4-Dimethylpyridine-2,4-diamine, 95%, 250mg
SKU F476189-250MG
€ 374,00

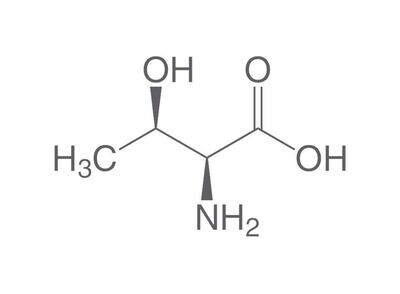

L-Threonine, 25 g
L-Threonine, 25 g
L-Threonine, 25 g
SKU T206.1
€ 21,29
3-Hydroxy-2-naphthohydrazide, 95.0%, 100g
3-Hydroxy-2-naphthohydrazide, 95.0%, 100g
3-Hydroxy-2-naphthohydrazide, 95.0%, 100g
SKU F226520-100G
€ 299,20
Calcium sulphate dihydrate, min. 98%, pa, ACS, 2.5 kg, plastic packaging.
Calcium sulphate dihydrate, min. 98%, pa, ACS, 2.5 kg, plastic packaging.
Calcium sulphate dihydrate, min. 98%, pa, ACS, 2.5 kg, plastic packaging.
SKU P741.3
€ 247,33
cis-Cyclohexane-1,2-dicarboxylic acid, 97.00%, 1g
cis-Cyclohexane-1,2-dicarboxylic acid, 97.00%, 1g
cis-Cyclohexane-1,2-dicarboxylic acid, 97.00%, 1g
SKU F242628-1G
€ 18,70
N1,N1,N3,N3-tetrabutylmalonamide, 98%, 5g
N1,N1,N3,N3-tetrabutylmalonamide, 98%, 5g
N1,N1,N3,N3-tetrabutylmalonamide, 98%, 5g
SKU F769747-5G
€ 356,40
6-(Trifluoromethoxy)pyridin-3-amine, 95.0%, 1g
6-(Trifluoromethoxy)pyridin-3-amine, 95.0%, 1g
6-(Trifluoromethoxy)pyridin-3-amine, 95.0%, 1g
SKU F218356-1G
€ 973,50

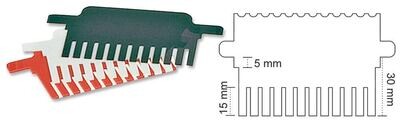

Comb ROTIPHORESE® PROclamp MINI, 1.0 mm, Bag, 8, 1 Piece
