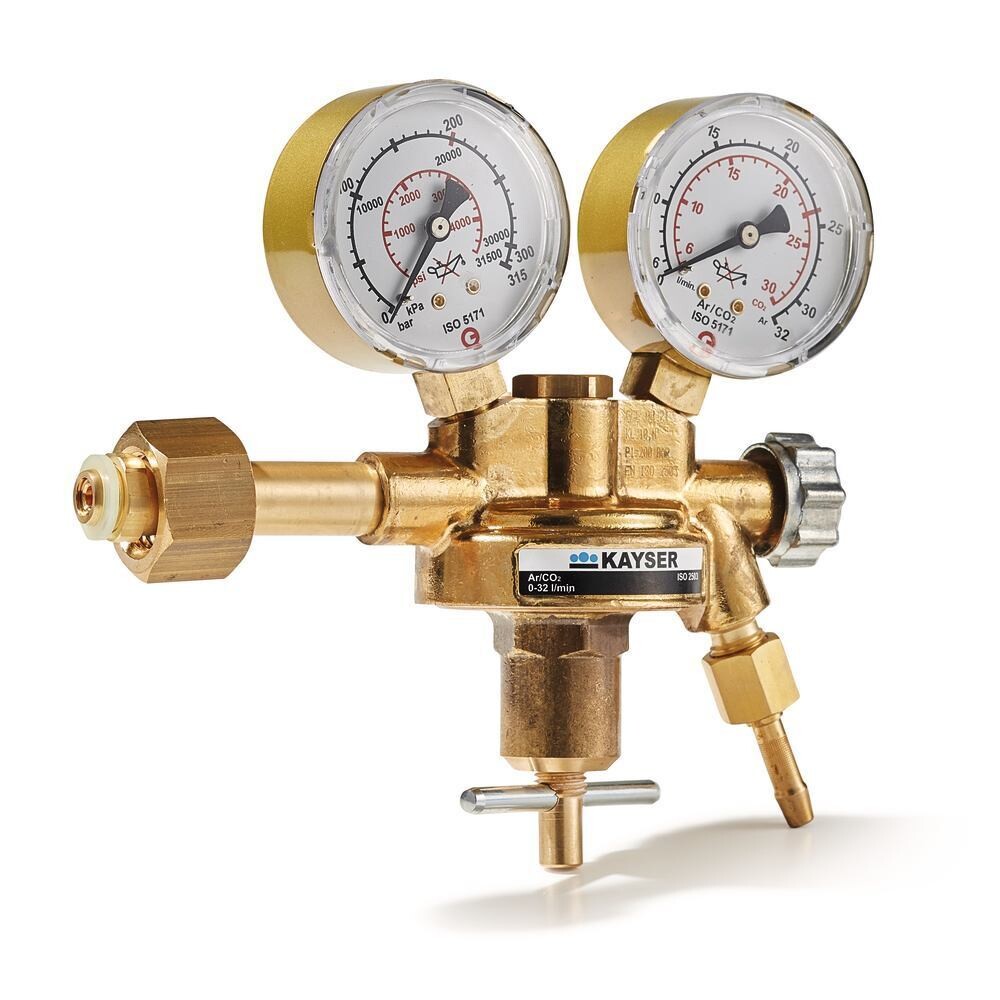

Cylinder pressure reducer, single-stage version, brass, Ar/CO2, 0-24/23 l/min 1 Piece
SKU 0290.1
€ 107,80
In stock
1
Save this product for later
Cylinder pressure reducer, single-stage version, brass, Ar/CO2, 0-24/23 l/min 1 Piece
Product Details
HS code: 84811099
Material: Brass
EAN: 4052613001871
Brand: Kayser
Material: brass.
For safe removal of gas from steel bottles up to 200 bar, while simultaneously reducing the required working pressure to 10 bar.
- Manufactured according to EN ISO 2503
- With safety valve (triggers at 12 bar)
Working pressure gauge with double scale (l/min and bar)
Gas pressure regulator single stage with standard connection
Technical Information
| Gas type | Noble gases/CO2 volumetric flow rate 0–28/30 l/min |
| Readability | 0.5 bar |
| Bottle connection | W 21.8 x 1/14″ right |
| Tube connection | G 1/4″ right |
| Upstream pressure, max. | 200 bar |
| Operating temperature | -20 to +60 °C |
| L x W x H | 180 x 65 x 170 mm |
| Weight | 1,7 kg |
