Home/Store/Laboratory supplies/Chromatography/Gas chromatography (GC)/Gas chromatography (GC) / Capillary columns for GC
GC capillary column ROTI®Cap-624, 25 m, 0.32 mm, 1.80 µm, 1 Piece(s)

GC capillary column ROTI®Cap-624, 25 m, 0.32 mm, 1.80 µm, 1 Piece(s)

SKU 6400.1
€ 546,40
In stock
1
Save this product for later
GC capillary column ROTI®Cap-624, 25 m, 0.32 mm, 1.80 µm, 1 Piece(s)
Product Details
HS code: 90279000
EAN: 8721028181343
Brand: Carl Roth
Fused Silica coated with polyimide

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!

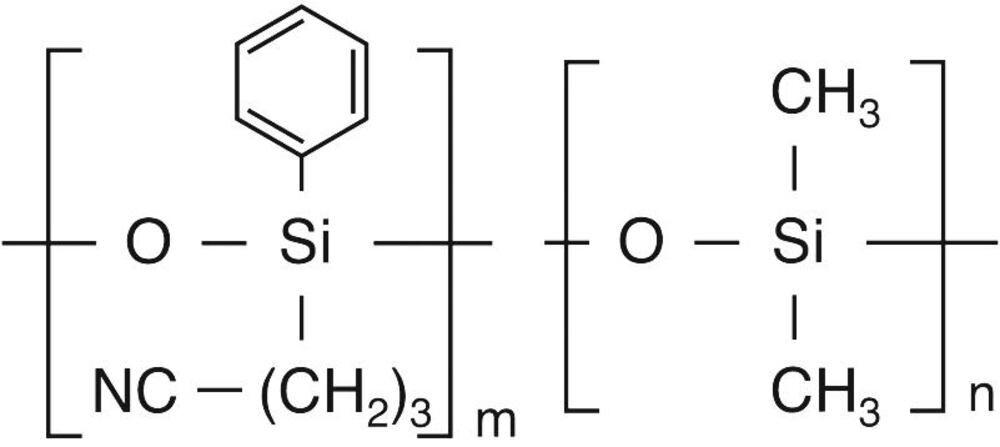

6 % Cyanopropylphenyl - 94 % Dimethylpolysiloxane

  • Medium polar
  • Working temperature limits:
    280 °C for isothermal operations
    300 °C for short isotherms in a temperature programme
  • Application areas: recommended for environmental analysis
Similar phases:
  • HP-624, HP-VOC, DB-624, DB-VRX, SBP®-624, CP-624, Rtx®-624, Rtx®-Volatiles, 007-624, BP624, VOCOL®
  • Equivalent to USP phase G43


GC capillary column ROTI®Cap-624 medium polar,
developed and manufactured in Germany

Technical Information
Column length 25 m
Ø internal 0.32 mm
Film thickness 1.8 µm
Phase 624
Polarity medium polar
Fused Silica coated with polyimide
Cage size 7" (inch)
USP listing G43

Further attractive products to complete your chromatography laboratory can be found on our Chromatography page!


ROTI®Cap High Performance Capillary Columns

The proved Carl ROTH series of high performance capillary columns for gas chromatography.



ROTI®Cap capillary columns set standards:

Low column bleed
Modern manufacturing processes offer capillaries with lower bleed levels, which are especially suitable for GC-MS. Less column bleed yields increased sensitivity and accuracy through a better signal to noise ratio for any kind of detector. Further reduced column bleed improves detectability of solutes in qualitative and quantitative GC-MS analyses.

High thermal stability

Due to high temperature stability ROTI®Cap capillary columns can be operated at about 40 °C higher temperatures compared to standard phases. Thanks to these elevated working temperatures, high-boiling components, which exhibit very long retention times and wide peaks on standard phases, elute earlier and with a more well-formed peak.

High inert columns due to optimised deactivation
Polar compounds are frequently difficult to analyse because they often give broad tailing peaks. Advances in deactivation technology for the ROTI®Cap capillaries result in an excellent chromatographic performance yielding improved peak shapes of polar compounds combined with improved efficiency and sensitivity.

In order to guarantee best industry standard capillaries with highest reproducibility from column to column ROTI®Cap capillary columns have to meet high specifications.
Within the quality control the following parameters are determined:

  • Separation Efficiency by measuring the separation number (acc. to Kaiser) in a temperature programme phases
  • Polarity by measuring retention indices
  • Bleeding in a temperature programme with a test mixture including high-boiling hydrocarbons
  • Inertness by measuring the peak height ratio for decylamine/C12 (for non-polar to medium polar phases)
