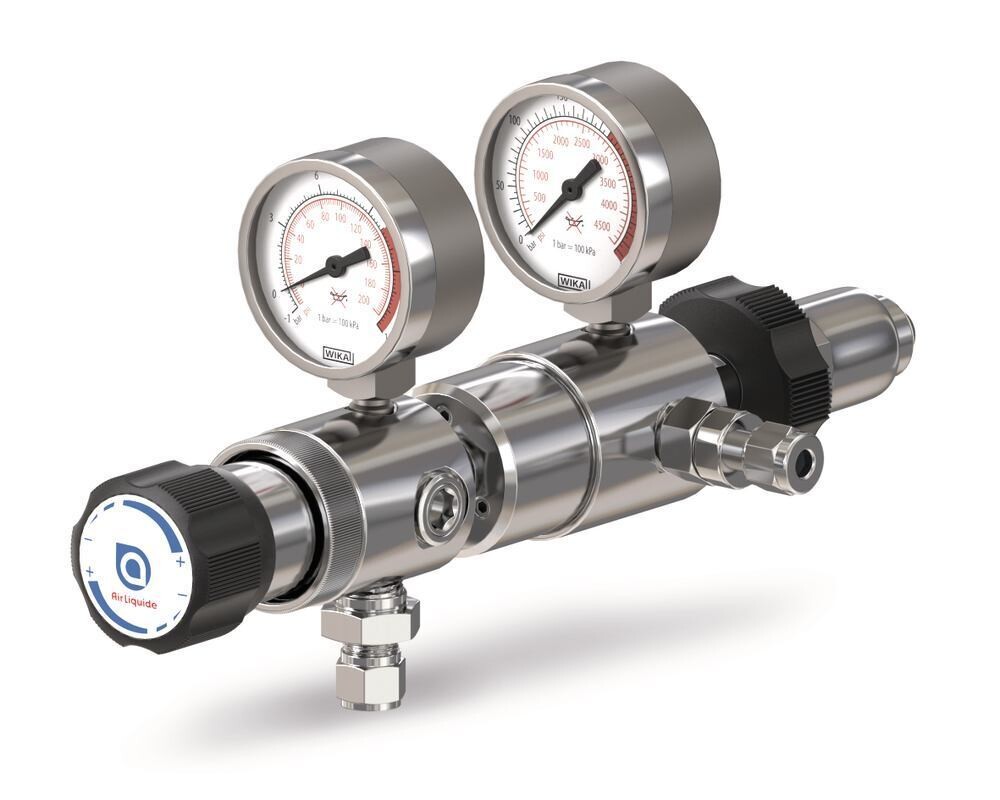

Gas pressure reducer two-stage, brass, 0.1 - 3 bar, nitrogen 1 Piece
SKU C294.1
€ 916,78
In stock
1
Save this product for later
Gas pressure reducer two-stage, brass, 0.1 - 3 bar, nitrogen 1 Piece
Product Details
HS code: 84811099
Material: Brass
Brand: AirLiquide
Material: brass, chrome-plated.
For all pure and ultra-pure gas mixtures, apart from acetylene and corrosive gases. For applications requiring a constant initial pressure.
Gas pressure regulator two-stage Back pressure up to 3 bar
Technical Information
| Gas type | Nitrogen |
| Back pressure | 0,1-3 bar |
| Readability | 0.1 bar |
| Bottle connection | W 24.32 x 1/14″ right |
| Upstream pressure, max. | 200 bar |
| Inlet connection | bottle connection according to DIN 477 |
| Outlet connection | clamping ring screw connection for 6 mm pipe |
| Total leakage rate | 3 x 10-7 mbar l/s |
| Operating temperature | -20 to +50 °C |
| L x W x H | 180 x 98 x 135 mm |
| Weight | 1,6 kg |
