HD Mini color camera VC.3023 with 1/2.8 sensor, 2 MP camera and 12 bit color. Without monitor

Features

• High definition 1080P color camera
• Real time images directly on screen
• Standalone
• Direct connection of mouse
• C-mount interface with c-mount lens (23.2)
• Wide range of measurement functions
• HDMI and SD memory card

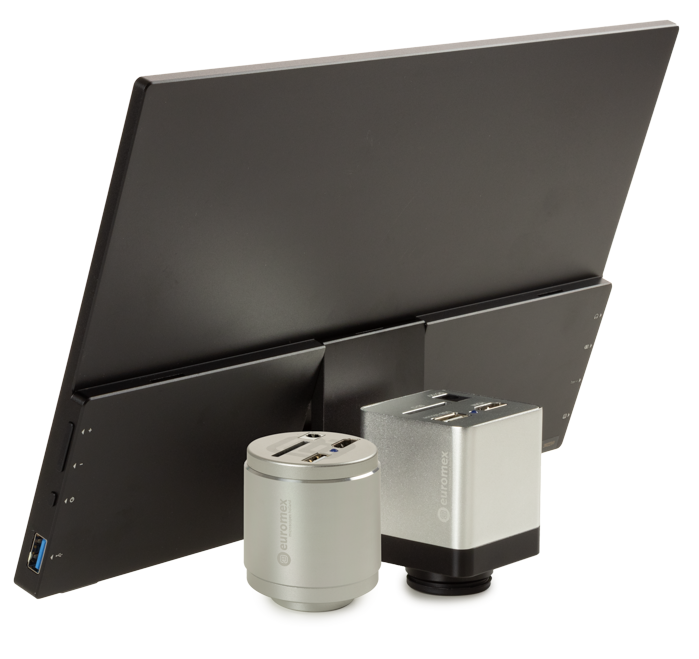

• Model with 13 HD screen (VC.3024-HDS)

[tab name='Technical Specifications']

STANDALONE
No computer or computer knowledge is required to operate these cameras. Thanks to the direct connection via HDMI cable, a computer is unnecessary. All settings are set automatically, making the camera very user-friendly and allowing users to work faster and more efficiently.

Once connected via HDMI cable to an HDMI screen, TV or projector, users can operate the built-in software with a mouse , which can be connected directly to the camera. Users can save photos in 1920 x 1080 pixel jpg to the included SD memory card.

These key features make these cameras ideal for quality control, education and live demonstrations

The built-in software of the camera contains the following functions:
• save photo or video,
• white balance,
• manual/automatic exposure,
• zoom in/out,
• horizontal/vertical mirroring,
• image freeze,
• raster,
• hide menu,
• image corrections (sharpness, noise reduction, saturation, gamma, contrast)
• metering functions

The camera comes with a C-ring and can be connected to all Euromex microscopes using a C-mount adapter. The HD Mini camera is supplied with a 0.37x C-ring adapter for standard 23.2 mm tube

PACKAGING
The HD -Mini VC.3023 is supplied in a cardboard packaging, tube adapters 30.0 and 30.5 mm to 23.2 mm for use with stereo microscopes, mouse, 32 SD memory card, with 23.2 mm tube C-mount 0.5x adapter, HDMI cable and DC 12V/1A power supply. In addition to the above, the VC.3024-HDS is also equipped with a 13" HD screen

TECHNICAL SPECIFICATIONS

Sensor
HDMI 2.0 Mega pixels CMOS high-sensitivity sensor (Sony)

Format
1/2.8 inch, HDTV 1080p

Pixels
1920 x 1080 pixels (recording mode)
1920 x 1080 pixels (live mode)
HDMI 60 fps

Scan fashion
Progressive rolling shutter

Pixel size
2.9 x 2 .9 μm

Noise
3D Noise Reduction

Sensitivity
1300mv/lux-sec

Color
12 bits

Dynamic range
69 dB

S/N max
42 dB

Whitebalance
Automatic/manual?ROI

Interface
HDMI

Storage
Images are stored at a standard high speed 32 Gb SD memory card (we recommend using a class-4 SD card or higher and ≤ 128Gb)

Mounting
C-ring interface

Power supply
DC 12V/ 1A adapter

Using conditions
-10~ 50 Celsius, 30~80%RH< /p>

Storage temperature
-20~ 60 Celsius, 10~60%RH

Features associated with the on-screen software
< /strong>Photo and video recording, white balance, auto/manual exposure, zoom In/out, horizontal/vertical tilt, video still/stop video still, grid, Display/hide Camera Control Panel, color setting (sharpness/noise reduction/ saturation/gamma/contrast), measurement functions

Compatibility
Suitable for all HDMI screens, monitors and projectors
