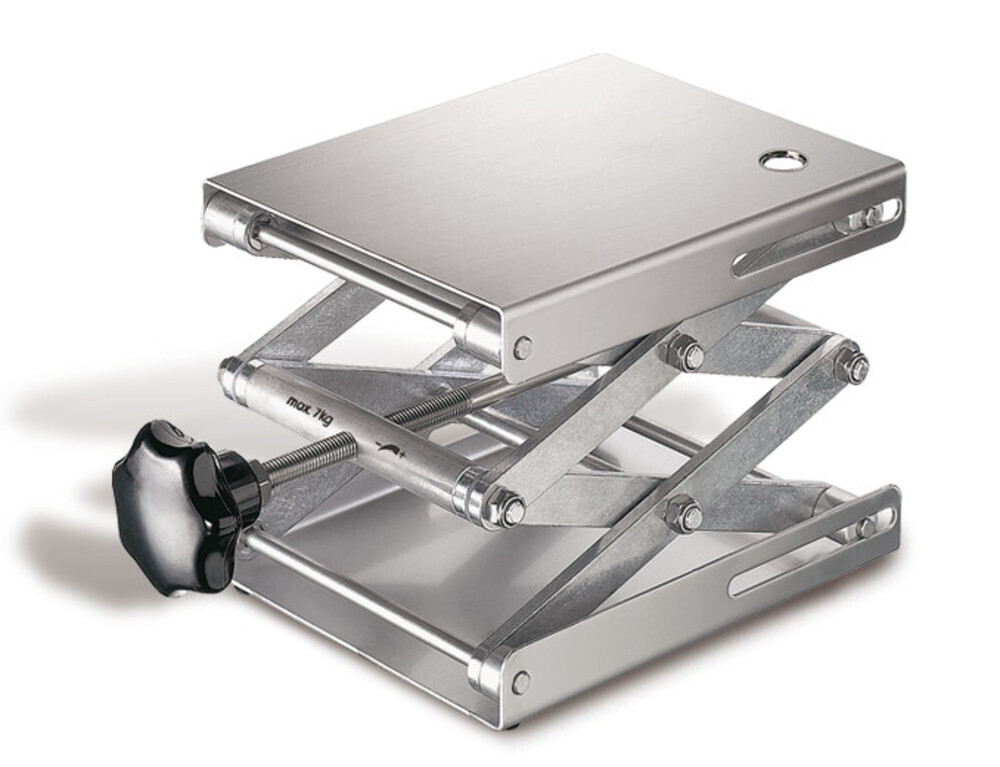

Jack ROTILABO®, 120 x 140 mm, 1 Piece
SKU YT69.1
€ 176,02
In stock
1
Save this product for later
Jack ROTILABO®, 120 x 140 mm, 1 Piece
Product Details
HS code: 84254900
Material: Stainless steel
EAN: 8721028158291
Brand: Usbeck
Material: stainless steel, Aluminium scissor frame.
Rubber feet for slip-resistant standing position. Support plates with M10 threaded hole, e.g. for attaching the Flex clamps, Art. No. YT72.1ff (please order separately).
Jack ROTILABO®
Technical Information
| L x W | 120 x 140 mm |
| Height-adjustability | 60-243 mm |
| Moveable load | 5 kg |
| Static load | 30 kg |
| Standards | DIN 12897 |
| Length | 120 mm |
| Width | 140 mm |
Operating load is the greatest dynamic load at which the jack can be lifted out of any position.
Static load is the maximum static load which can be applied to the jack.
Example:
the ROTILABO® Mini jack (Art No. YT68.1) can carry a max. load of 2 kg and be moved up or down (= operating load). A maximum weight of 15 kg may be applied to the jack, but it will no longer be possible to screw the jack up or down (= static load).
