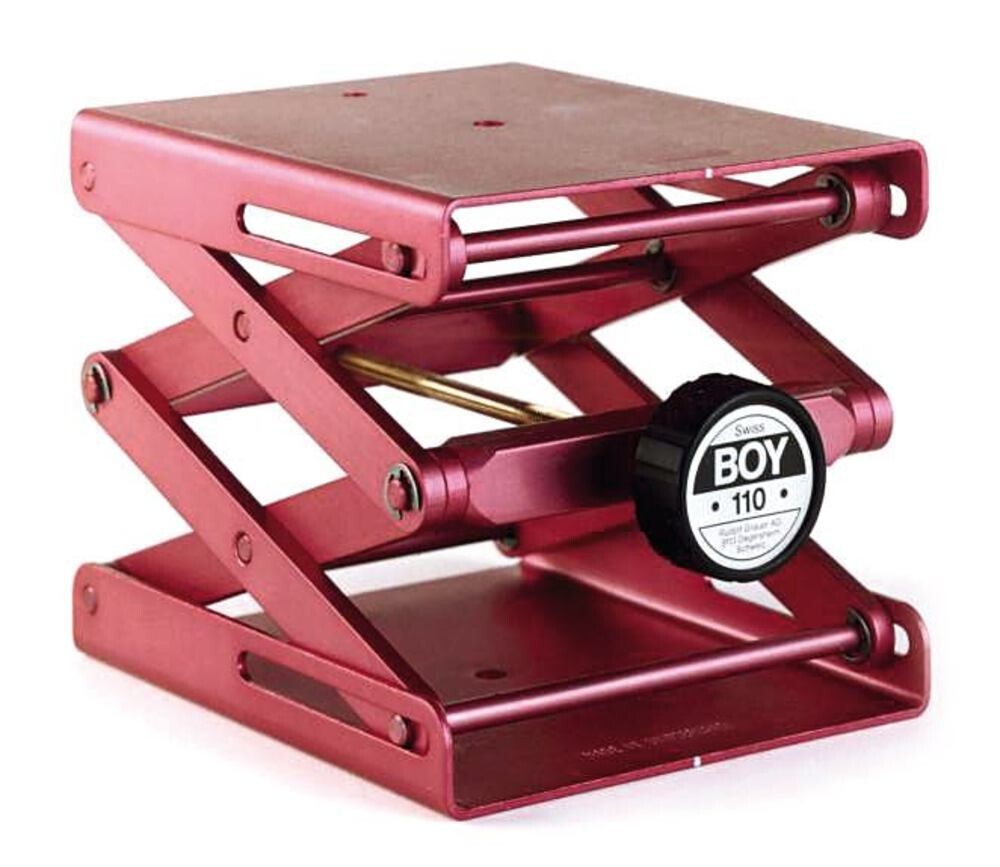

Jack Swiss Boy One additional plate, 500 x 400 mm, 1 Piece
SKU 1A23.1
€ 1 639,13
In stock
1
Save this product for later
Jack Swiss Boy One additional plate, 500 x 400 mm, 1 Piece
Product Details
HS code: 84254900
Material: Aluminium
EAN: 8721028087751
Brand: Rudolf Grauer
Material: aluminium anodised.
- Easily adjustable
- High stability
- High load capacity
The static load is always specified at the centre position.
Jack Swiss Boy One additional plate
The additional plate fitted on the jack offers a larger mounting surface. Dimensions (L x W) are overall dimensions including additional plate.
Delivery incl. additional plate (fitted).
Technical Information
| Type | 118+ |
| L x W | 500 x 400 mm |
| Height-adjustability | 120-493 mm |
| Static load | 70 kg |
| Colour | silver |
| Length | 500 mm |
| Width | 400 mm |
Operating load is the greatest dynamic load at which the jack can be lifted out of any position.
Static load is the maximum static load which can be applied to the jack.
Example:
the ROTILABO® Mini jack (Art No. YT68.1) can carry a max. load of 2 kg and be moved up or down (= operating load). A maximum weight of 15 kg may be applied to the jack, but it will no longer be possible to screw the jack up or down (= static load).
