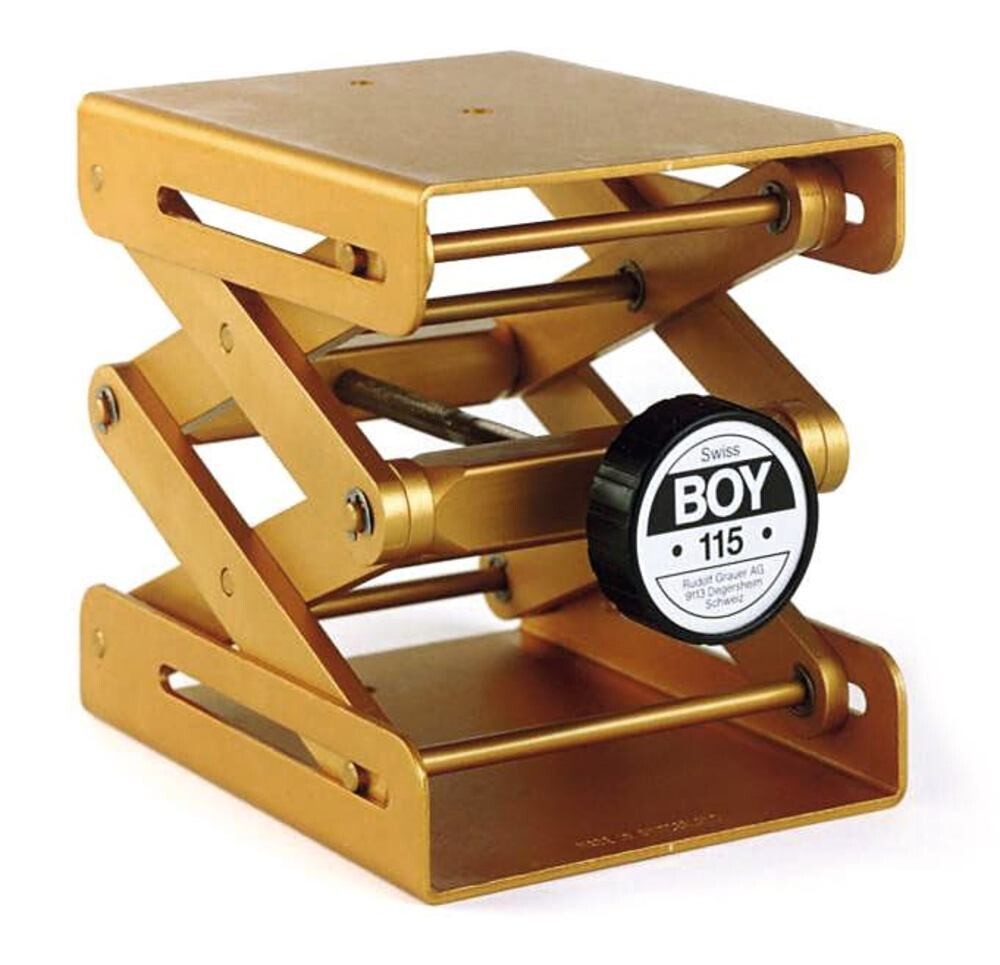

Jack Swiss Boy Two additional plates, 300 x 300 mm, 1 Piece
SKU 1A1Y.1
€ 439,40
In stock
1
Save this product for later
Jack Swiss Boy Two additional plates, 300 x 300 mm, 1 Piece
Product Details
HS code: 84254900
Material: Aluminium
EAN: 8721028087713
Brand: Rudolf Grauer
Material: aluminium anodised.
- Easily adjustable
- High stability
- High load capacity
The static load is always specified at the centre position.
Jack Swiss Boy Two additional plates
The two additional plates (fitted at the top and bottom of the jack) provide a larger mounting surface and improved stability. Dimensions (L x W) are overall dimensions including additional plates.
Delivery incl. additional plate (fitted).
Technical Information
| Type | 110+ |
| L x W | 300 x 300 mm |
| Height-adjustability | 60-243 mm |
| Static load | 30 kg |
| Colour | pink |
| Length | 300 mm |
| Width | 300 mm |
Operating load is the greatest dynamic load at which the jack can be lifted out of any position.
Static load is the maximum static load which can be applied to the jack.
Example:
the ROTILABO® Mini jack (Art No. YT68.1) can carry a max. load of 2 kg and be moved up or down (= operating load). A maximum weight of 15 kg may be applied to the jack, but it will no longer be possible to screw the jack up or down (= static load).
