High-pressure laboratory autoclave model 0 Basic version, 1 piece
SKU 2970.1
€ 1 037,53
In stock
1
Save this product for later
High-pressure laboratory autoclave model 0 Basic version, 1 piece
Product Details
HS code: 73072310
Material: Stainless steel
EAN: 8721028065872
Brand: Carl Roth
Material: stainless steel 1.4571 (V4A).

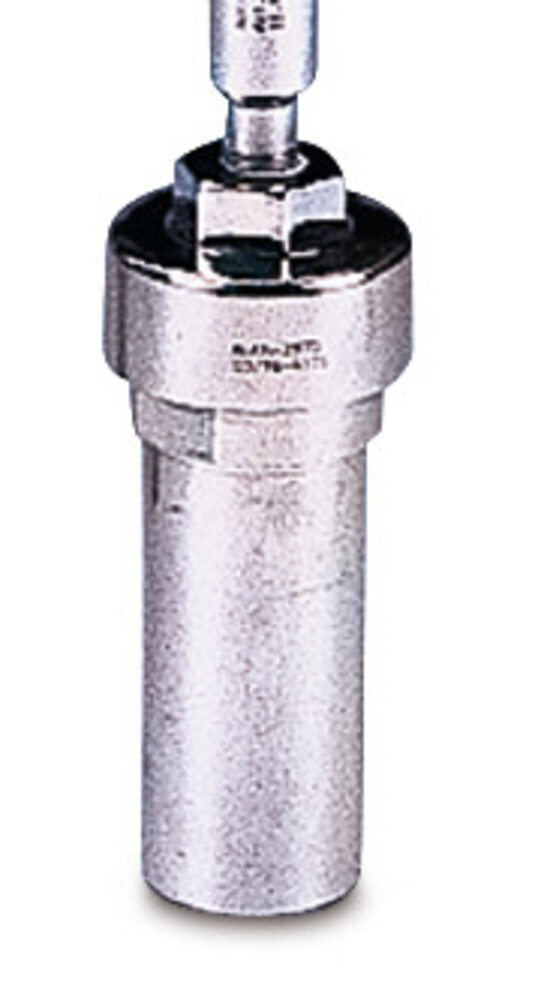

50 ml/100 barModel 0 is the smallest autoclave in the ROTH range. Initially it was developed for preliminary tests at room temperature. It is the steel test tube for all preliminary tests where work is carried out under high pressure. It is the ideal and cost-effective alternative for situations where glass carius tubes may present a danger. Model 0 has a screw-on head with a threaded opening for fitting to equipment. The opening can be closed with a screw stopper. Sealed with PTFE gaskets (max. 180 °C) or pure silver gaskets (max. 300 °C). Depending on the scope of the autoclave system, delivery times may apply!
High-pressure laboratory autoclaves model 0 Basic equipment
Technical Information
| Designation | Model 0, 50 ml beaker and head |
OVERVIEWHigh-pressure laboratory autoclaves from ROTH
| Model 0 | Model I | Model II | Model IV | |||
| Max. working volume (ml) | 50 | 100 | 200 | 300 | 250 | 500 |
| Max. working pressure (bar) | 100 | 100 | 100 | 100 | 200 | 100 |
| Heating mantle | none | 10 S | 20 S | 30 S | 30 S | 50 S |
| Sampling possible | no | no | yes | yes | ||
| Stirrer connection possible | no | no | yes | yes | ||
| Temp. measurement in autoclave possible | no | no | yes | yes | ||
Attention
Due to the shape of the screw thread, cold setting of cylinder and head is possible when screwing these on. This usually leads to them sticking when opening and the thread breaking as a result.The conducted reaction necessitates coating the thread with a release agent such as PTFE spray (Art. No. K007.1).Warning: Do not use PTFE screw thread tape!
Advice for working with silver gaskets
When working with silver gaskets, it is essential to tighten the screw threads very tightly to achieve the necessary seat. We therefore recommend annealing the silver gaskets at +850 °C before use - the gaskets remain softer and more pliable, even when cool, and seal more efficiently.
