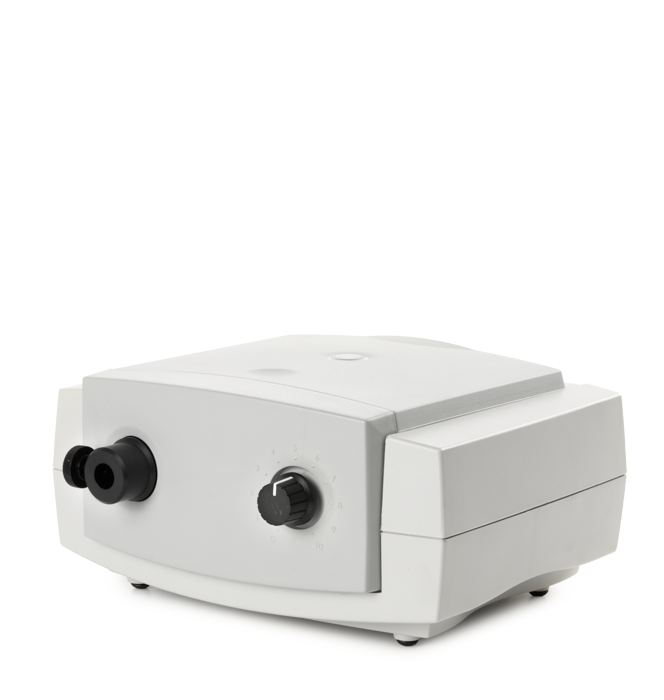

LE.5211 Cold light source 150 W halogen

[tab name='Description']

With stereo microscopes, choosing the right lighting is essential to obtain a perfect image with maximum resolution. Halogen is the traditional light source choice due to its high light intensity. LED lighting comes close to this, but has a longer lifespan, consumes less power and becomes less warm. The biggest advantage of LED lighting is the constant light spectrum at any level of light intensity. The Euromex light sources are suitable for all applications in industry, life sciences and material sciences.

Features

• Professional cold light sources
• For material sciences and stereo microscopy
• Halogen 150 W or 30 W LED versions
• Built-in forced cooling
• Various accessories

td>

Model	LE.5211
Lighting	150 W halogen
Luminous flux	21,000 lux max. *
Color temperature	3,000 K
Power supply	100-240 V AC / 12 V DC (50/60 Hz)
Dimensions	150x150x230 mm

[tab name='Technical Specifications']

• Multi-functional cold light source without light guides
• The high luminous flux and special features are ideal for various applications in industry, Life Sciences, Materials Sciences and stereo microscopy
• A wide range of light guides, adapters and accessories are available

LIGHT GUIDE
Self-supporting "gooseneck" fiber optic light guides
Aperture angle 65°, with black metal sheath
LE.5213
One-armed light guide, ø 4 mm glass fiber, length 50 cm

LE.5214
Two-armed light guide, ø 4 mm glass fiber, length 50 cm

< p>LE.5215
Three-armed light guide, ø 4 mm fiber optic, length 50 cm

LE.5219
Two-armed light guide, Ø 4 mm fiber optic, length 70 cm

Flexible fiber optic light guides with black PVC sheath
Aperture angle 65°
LE.5216
One -armed light guide, ø 4 mm glass fiber, length 100 cm

LE.5235
Two-armed light guide, ø 4 mm glass fiber, length 100 cm

LE.5235-3
Two-armed light guide, ø 4 mm glass fiber, length 300 cm

LE.5217
Three-armed light guide, ø 4 mm glass fiber, length 100 cm

LE .5218
Single-armed light guide, ø 8 mm glass fiber, length 100 cm

LE.5220
Single-armed light guide, ø 8 mm glass fiber, length 200 cm

LE.5239
Slit ring lighting, fiber optic, length 60 cm, Ø 8 mm

LE.5240
Slit ring lighting, fiber optic, length 100 cm, Ø 8 mm

LE.5241
Flexible fiber optic light guide, bending angle 90°, length 60 cm, Ø 4 mm

LIGHTING
• LE.5211 is equipped with a 150 W halogen lamp with color temperature 3,000 K
• The LE.5211-LED is equipped with a 30 W PowerLED (brightness is comparable to 120 W halogen), color temperature 6500 K
• LED lighting has a long lifespan, consumes less power and produces white daylight .
• Furthermore, there is no difference in color temperature when the lighting is dimmed (for LED models)

MODELS
