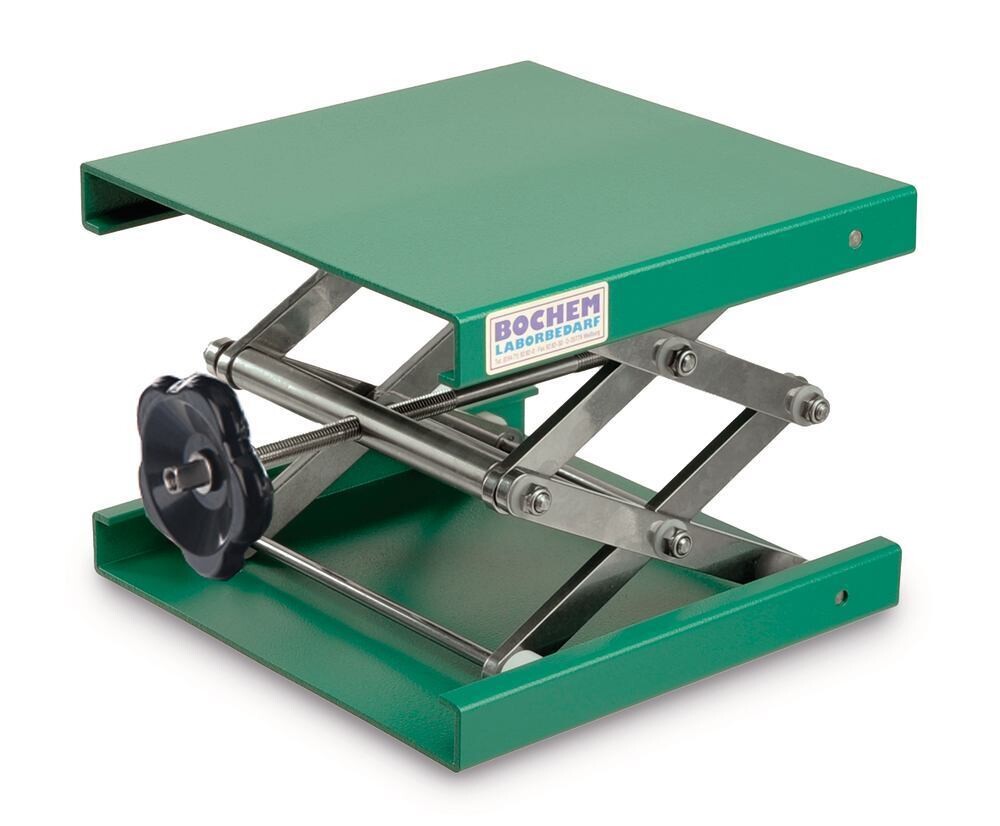

Ergonomic knob, rounded.
It is recommended to use a ratchet, which is attached to a special adjusting wheel.
L x W | 300 x 300 mm |
Height-adjustability | 90-470 mm |
Moveable load | 12 kg |
Static load | 60 kg |
Standards | DIN 12897 |
Length | 300 mm |
Width | 300 mm |
Operating load is the greatest dynamic load at which the jack can be lifted out of any position.
Static load is the maximum static load which can be applied to the jack.
Example:
the ROTILABO® Mini jack (Art No. YT68.1) can carry a max. load of 2 kg and be moved up or down (= operating load). A maximum weight of 15 kg may be applied to the jack, but it will no longer be possible to screw the jack up or down (= static load).
