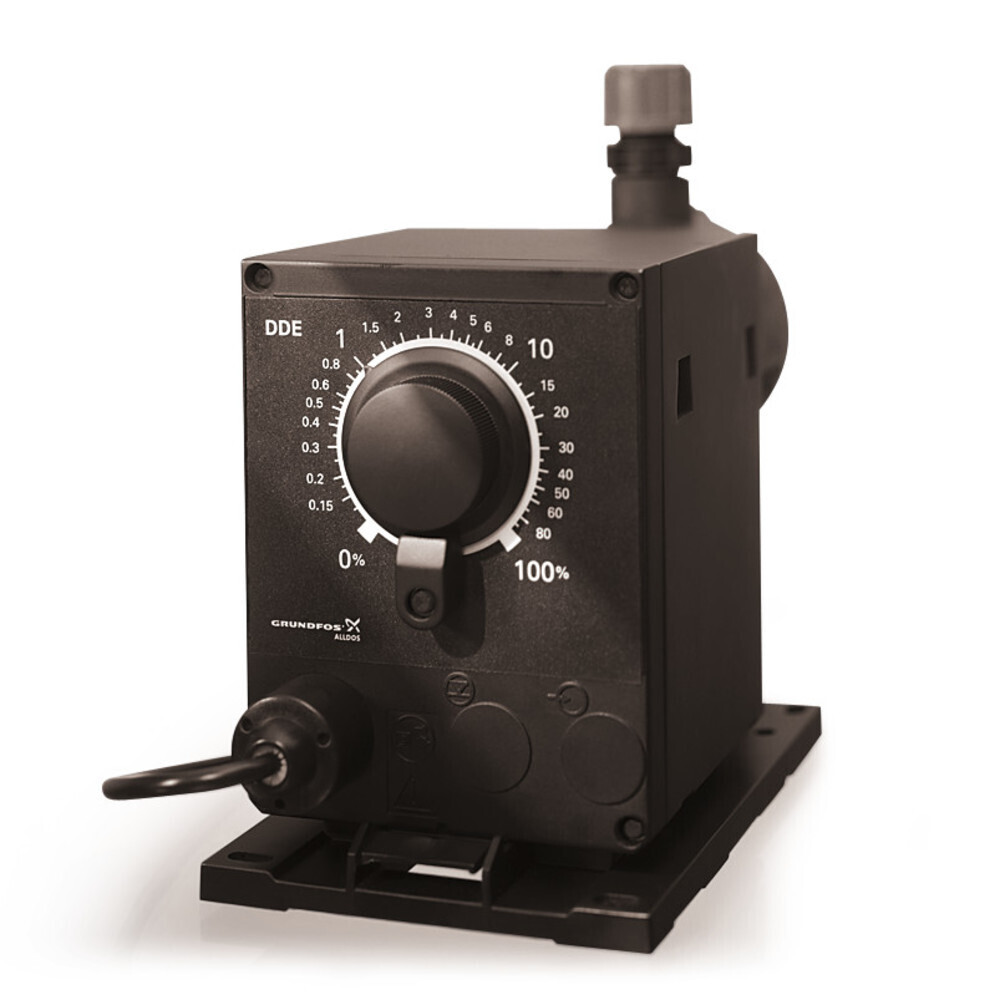

Powerful, speed-controlled stepper motor. Constant, continuous dosing performance. Adjustment range up to 1:1000. Pump status can be recognised via the traffic light principle. PTFE diaphragm with universal chemical resistance.
Type | DDE 15-4 |
Delivery rate | 15 l/h |
Suction lift | 6 nWC |
Max. pressure | 4 bar |
Media temperature | -10 - +45 °C |
Connection | for hose inner Ø 6 mm/outer Ø 9 mm |
IP rating | 65 |
Noise level | 60 db |
Materials in contact with media | PVC FKM ceramic |
W x D x H | 102 x 251 x 200.5 mm |
Weight | 2,4 kg |
Mains connection | 100-240 V, 50/60 Hz |
