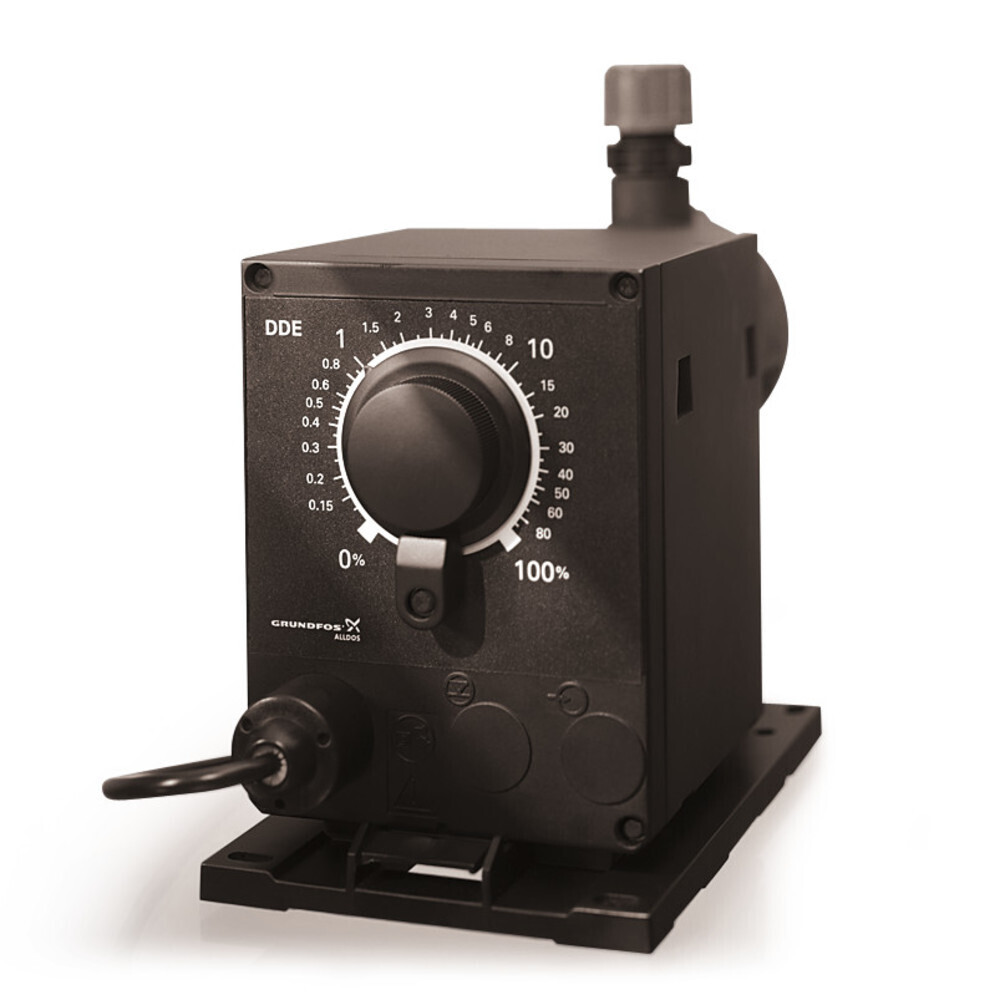

Diaphragm dosing pump DDE series, DDE 6-10, 6 l/h, 1 piece
SKU PE71.1
€ 823,58
In stock
1
Save this product for later
Diaphragm dosing pump DDE series, DDE 6-10, 6 l/h, 1 piece
Product Details
HS code: 84135040
EAN: 8721028051929
Brand: Grundfos
Powerful, speed-controlled stepper motor. Constant, continuous dosing performance. Adjustment range up to 1:1000. Pump status can be recognised via the traffic light principle. PTFE diaphragm with universal chemical resistance.
Diaphragm metering pump DDE series
Delivery incl. mounting plates as a base or for wall installation.
Technical Information
| Type | DDE 6-10 |
| Delivery rate | 6 l/h |
| Suction lift | 6 nWC |
| Max. pressure | 10 bar |
| Media temperature | -10 - +45 °C |
| Connection | for hose inner Ø 4 mm/outer Ø 6 mm |
| IP rating | 65 |
| Noise level | 60 db |
| Materials in contact with media | PVC FKM ceramic |
| W x D x H | 102 x 251 x 196 mm |
| Weight | 2,4 kg |
| Mains connection | 100-240 V, 50/60 Hz |
