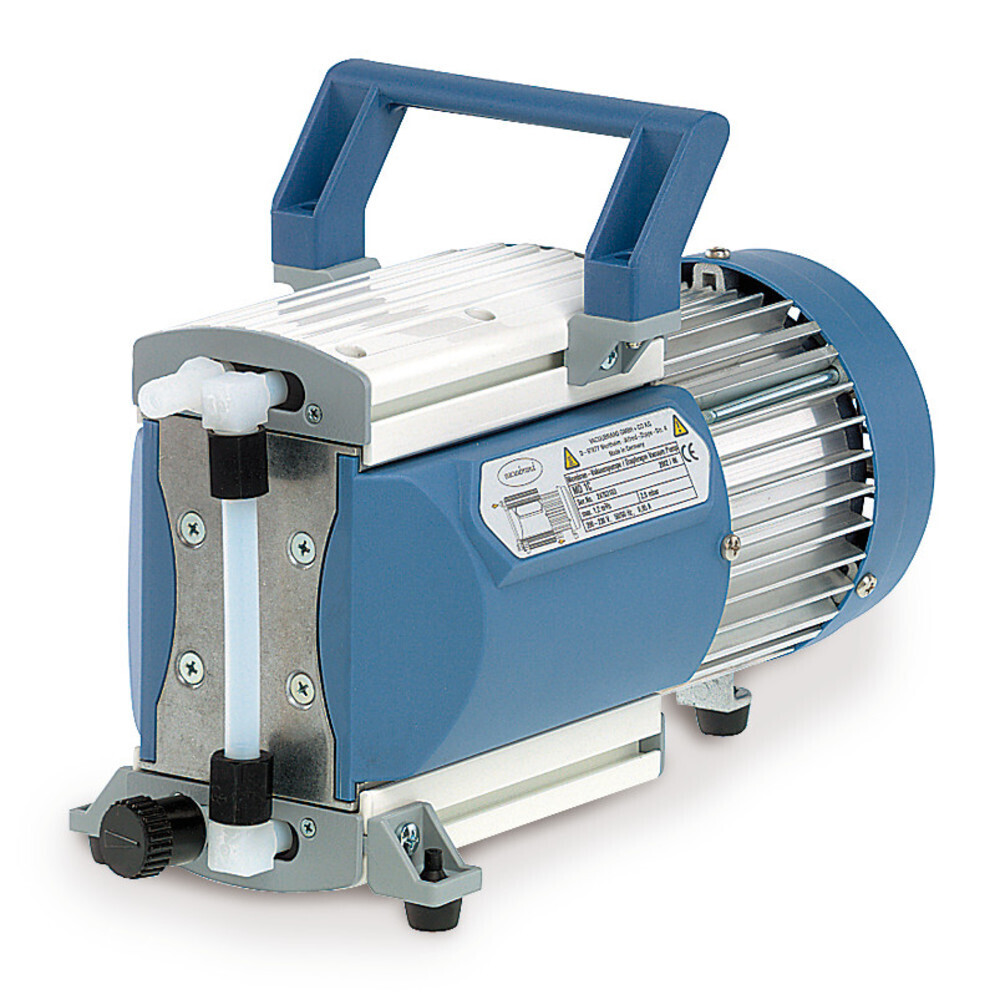

Diaphragm vacuum pump MD 1 series MD 1, 1 piece
SKU ETY5.1
€ 1 955,42
In stock
1
Save this product for later
Diaphragm vacuum pump MD 1 series MD 1, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082640
Brand: Vacuubrand
For evacuating and conveying gases down to an extremely low end vacuum.
- Three-stage, for a high suction capacity even at low pressures
- Very quiet and low vibration
- Long service life
- Easy diaphragm and valve replacements
Diaphragm vacuum pump MD 1 series MD 1
Wide range of applications for neutral gases and vapours.
Technical Information
| Type | MD 1 |
| Cylinder | 4 |
| Steps | 3 |
| Suction capacity (l/min) | 20 |
| Suction capacity (m³/h) | 1.2 |
| End vacuum (abs.) | 1,5 mbar |
| Media temperature | +10 - +40 °C (>100 mbar) 0 - +60°C (<100 mbar) °C |
| Inlet connection | for hose inner Ø 6 mm |
| Outlet connection | G1/8? silencer |
| Motor power | 80 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 40 |
| Materials in contact with media | pump head: aluminium diaphragms: PTFE valves: FPM |
| W x D x H | 143 x 326 x 215 mm |
| Weight | 7,3 kg |
| Mains connection | 200-230 V, 50/60 Hz |
