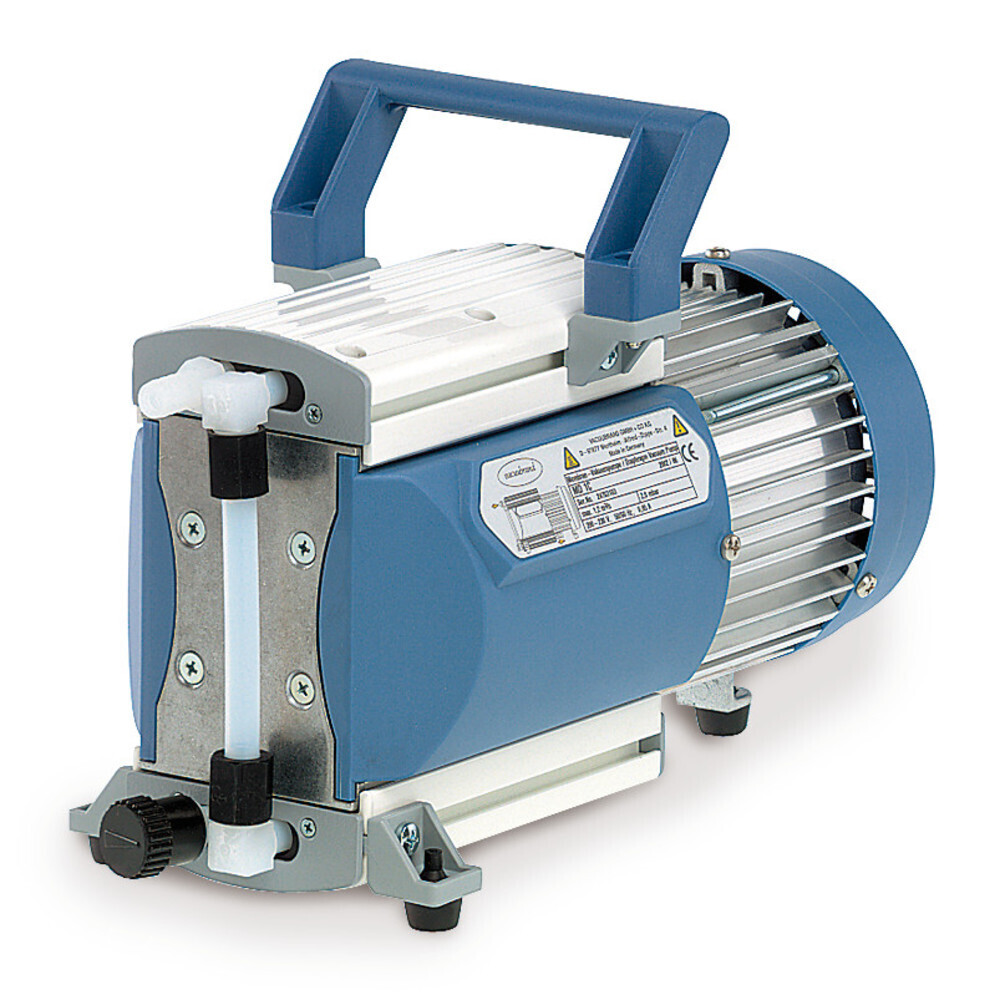

For evacuating and conveying gases down to an extremely low end vacuum.
Specially designed for aggressive gases through the use of chemical-resistant fluoroplastics, as well as excellent condensate resistance due to built-in gas ballast valve.
Type | MD 1C |
Cylinder | 4 |
Steps | 3 |
Suction capacity (l/min) | 22 |
Suction capacity (m³/h) | 1.3 |
End vacuum (abs.) | 2 mbar |
End vacuum abs. with gas ballast | 4 mbar |
Media temperature | +10 - +40 °C (>100 mbar) 0 - +60°C (<100 mbar) °C |
Inlet connection | for hose inner Ø 8-10 mm |
Outlet connection | for hose inner Ø 8 mm |
Motor power | 80 W |
Ambient temperature | +10 - +40 °C |
IP rating | 40 |
Materials in contact with media | pump head: PTFE/ETFE diaphragms: PTFE valves: FFPM |
W x D x H | 143 x 338 x 223 mm |
Weight | 6,9 kg |
Mains connection | 200-230 V, 50/60 Hz |
