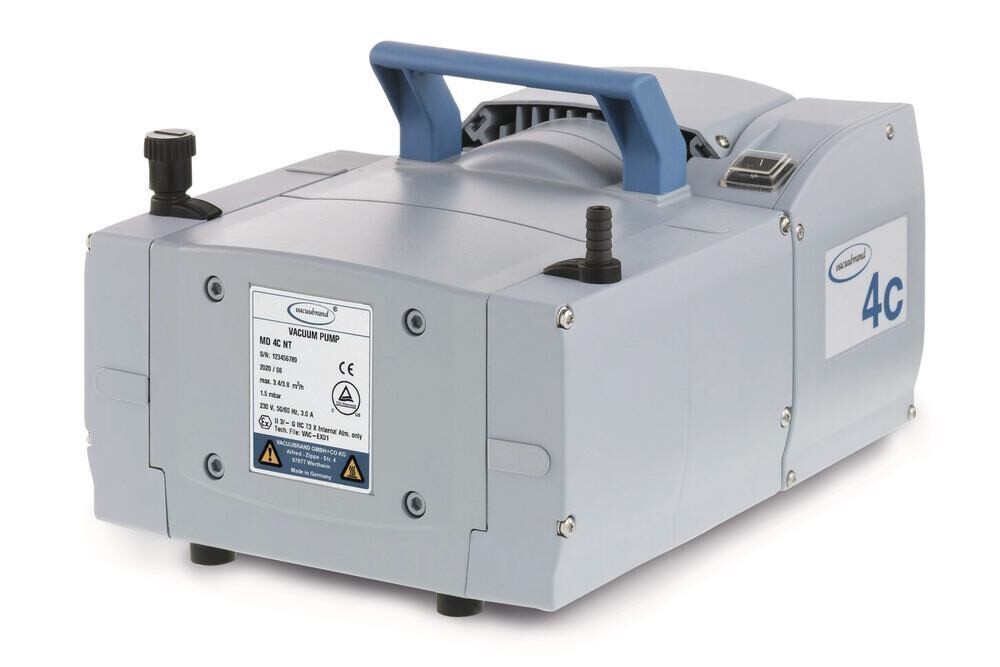

Diaphragm vacuum pump MD 4 series MD 4C NT, 1 piece
SKU 1TCY.1
€ 4 790,82
In stock
1
Save this product for later
Diaphragm vacuum pump MD 4 series MD 4C NT, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082282
Brand: Vacuubrand
Three-stage, high-power diaphragm vacuum pump with extremely high delivery rate almost up to the end vacuum. Often used as a replacement for rotary pumps due to reaching a very low end vacuum. Ideal for continuous, oil-free evacuation and conveying of gases and vapours to meet eh high vacuum requirements of physics and analytical applications
- NT series: particularly quiet, low-vibration operation, high gas-tightness and improved performance characteristics
- Extremely high diaphragm service life
Diaphragm vacuum pump MD 4 series MD 4C NT
For aggressive and corrosive gases and vapours.
Application: vacuum generation for rotary evaporators/drying ovens, for pumping out large quantities of vapour from drying ovens/gel dryers and many other laboratory vacuum applications without solvent recovery.
- Excellent chemical resistance
- High vapour and condensate resistance thanks to integrated gas ballast valve - also suitable for high boilers thanks to the very high end vacuum (even with open gas ballast valve)
Technical Information
| Type | MD 4C NT |
| Cylinder | 4 |
| Steps | 3 |
| Suction capacity (l/min) | 57 |
| Suction capacity (m³/h) | 3.4 |
| End vacuum (abs.) | 1,5 mbar |
| End vacuum abs. with gas ballast | 3 mbar |
| Overpressure | 0,1 bar |
| Media temperature | +10 - +40 °C |
| Inlet connection | for hose inner Ø 8 mm |
| Outlet connection | for hose inner Ø 8 mm |
| Motor power | 250 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 40 |
| Materials in contact with media | ETFE pump head, carbon fibre-reinforced diaphragms: PTFE valves: FFKM |
| Weight | 14,3 kg |
| Mains connection | 230 V, 50/60 Hz |
