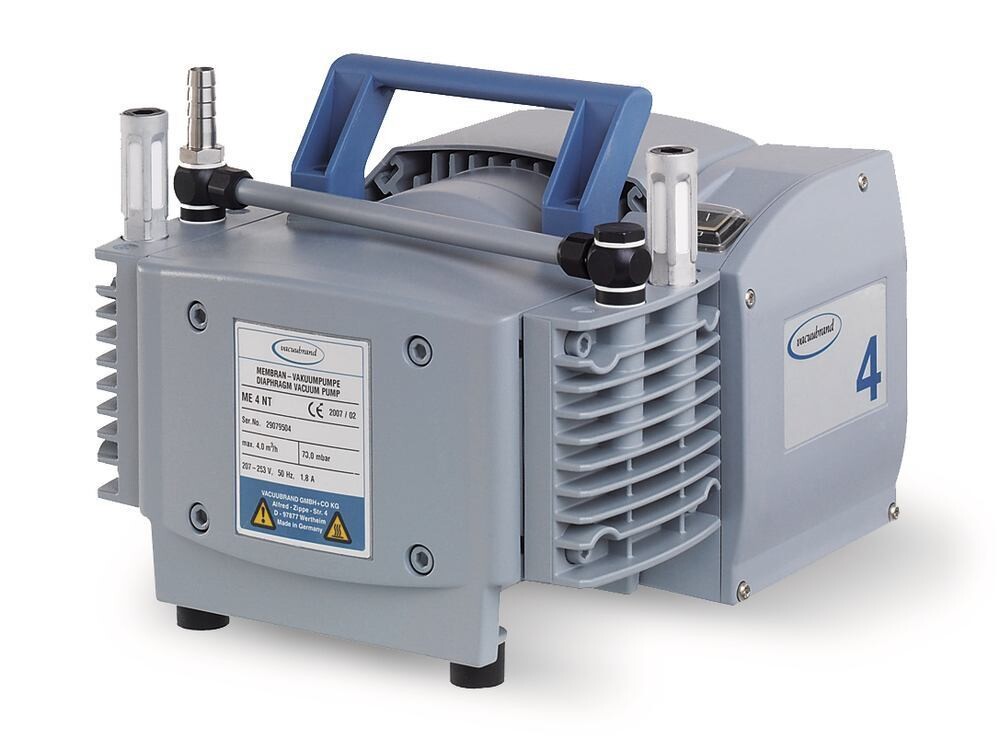

Diaphragm vacuum pump ME 4 series ME 4 NT, 1 piece
SKU KH50.1
€ 1 800,17
In stock
1
Save this product for later
Diaphragm vacuum pump ME 4 series ME 4 NT, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082725
Brand: Vacuubrand
Ideal for analytic applications in the laboratory and industrial operations.
- Continuous, oil-free evacuation and conveying of gases
- Very low leak rate thanks to particularly tightly sealed connection technology. Reliable output data
- Long diaphragm service life
- Particularly quiet and smooth running thanks to compact drive
- Long service life
- Easy diaphragm and valve replacements
Diaphragm vacuum pump ME 4 series ME 4NT
Wide range of applications for neutral gases and vapours.
Extremely high diaphragm durability thanks to highly flexible FKM double diaphragms with fabric reinforcement.
Technical Information
| Type | ME 4 NT |
| Cylinder | 2 |
| Steps | 1 |
| Suction capacity (l/min) | 67 |
| Suction capacity (m³/h) | 4 |
| End vacuum (abs.) | 70 mbar |
| Overpressure | 1 bar |
| Media temperature | +10 - +40 °C |
| Inlet connection | for hose inner Ø 8-10 mm |
| Outlet connection | 2 x silencer / G1/4? |
| Motor power | 180 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 40 |
| Noise level | 45 db |
| Materials in contact with media | Pump head: Aluminium Diaphragms: FPM Valves: FPM |
| W x D x H | 239 x 243 x 198 mm |
| Weight | 11 kg |
| Mains connection | 200-230 V, 50/60 Hz |
