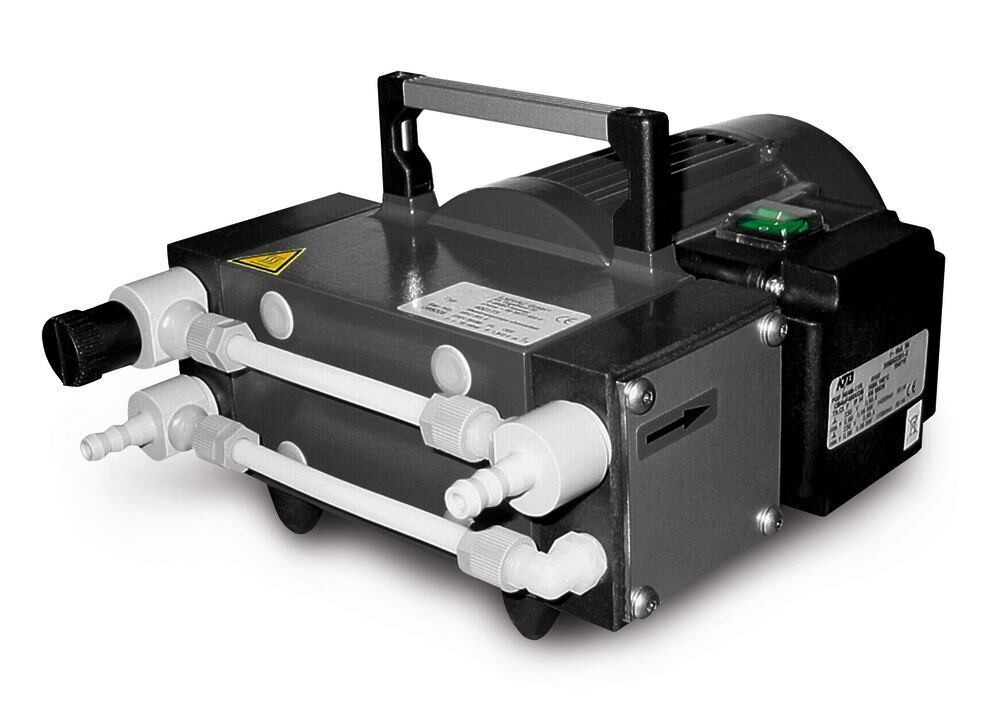

Diaphragm vacuum pump MPC series, MPC 201 E, 33 l/min, <75 mbar, 1 piece
SKU 1AA3.1
€ 1 548,24
In stock
1
Save this product for later
Diaphragm vacuum pump MPC series, MPC 201 E, 33 l/min, <75 mbar, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082183
Brand: WELCH Vacuum
Ideal for pumping and compressing neutral and aggressive gases and vapours.
With integrated gas ballast valve for reducing condensate formation within the pump head.
Application: in physical and chemical laboratories for vacuum filtration, distillation, drying, etc.
Diaphragm vacuum pump MPC series
Technical Information
| Type | MPC 201 E |
| Cylinder | 2 |
| Steps | 1 |
| Suction capacity (l/min) | 33 |
| Suction capacity (m³/h) | 2 |
| End vacuum (abs.) | <75 mbar |
| End vacuum abs. with gas ballast | 90 mbar |
| Media temperature | +10 - +40 °C |
| Connection | for hose inner Ø 8 mm |
| Motor power | 60 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 54 |
| Materials in contact with media | connection/pump head: PTFE with carbon fibre reinforcement seal: EPDM screw fitting: PVDF valves: PEEK diaphragm disc: NBR connecting elements: PP |
| W x D x H | 195 x 225 x 147 mm |
| Weight | 6,5 kg |
| Mains connection | 230 V, 50/60 Hz |
