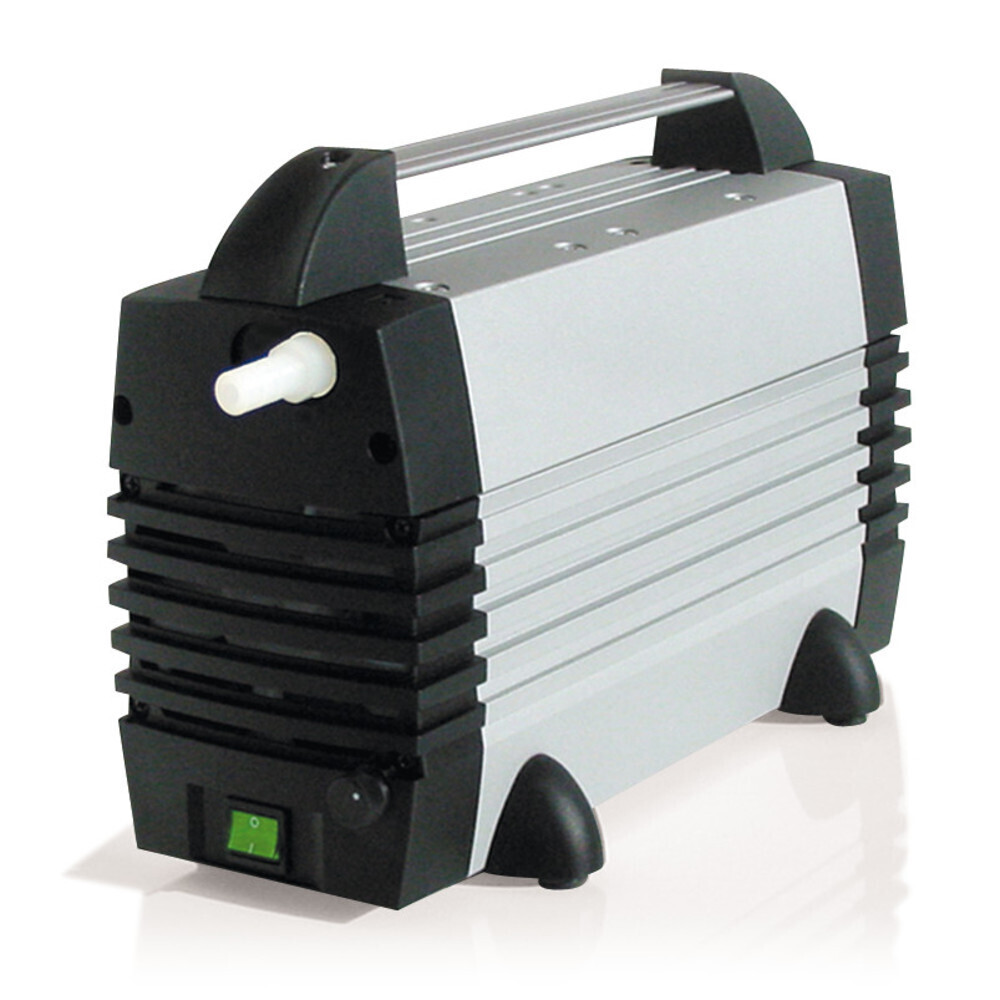

Diaphragm vacuum pump N 920 KT.29.18G, 1 piece
SKU EP19.1
€ 3 145,96
In stock
1
Save this product for later
Diaphragm vacuum pump N 920 KT.29.18G, 1 piece
Product Details
HS code: 84141089
EAN: 8721028082626
Brand: KNF
For all applications that still require a large suction capacity at low pressure.For pumping and extracting air, gases and vapours, for sampling and evacuating containers or systems.
- The delivery rate can be adjusted by changing the speed using the potentiometer
- Ideal for aggressive and corrosive gases and vapours
- Very quiet and low vibration
- Diaphragm stabilisation system for high suction capacity in the lower vacuum range
- With integrated gas ballast valve for reducing condensate formation within the pump head
Application:for various processes and procedures, e.g. in laboratories, which need to be performed under vacuum conditions. Also usable in the semiconductor and pharmaceutical industries and in chemical and analysis technology.
Diaphragm vacuum pump N 920 KT.29.18G
Technical Information
| Type | N 920 KT.29.18G |
| Suction capacity (l/min) | 21 |
| Suction capacity (m³/h) | 1.2 |
| End vacuum (abs.) | 2 mbar |
| End vacuum abs. with gas ballast | <5 mbar |
| Overpressure | 0,5 bar |
| Media temperature | +5 - +40 °C |
| Connection | for hose inner Ø 10 mm |
| Motor power | 135 W |
| Ambient temperature | +10 - +40 °C |
| IP rating | 20 |
| Materials in contact with media | pump head: PPS diaphragms: PTFE-coated valves: FFPM gas ballast valve: PVDF |
| W x D x H | 158 x 324 x 226 mm |
| Weight | 8,5 kg |
| Mains connection | 100-240 V, 50/60 Hz |
