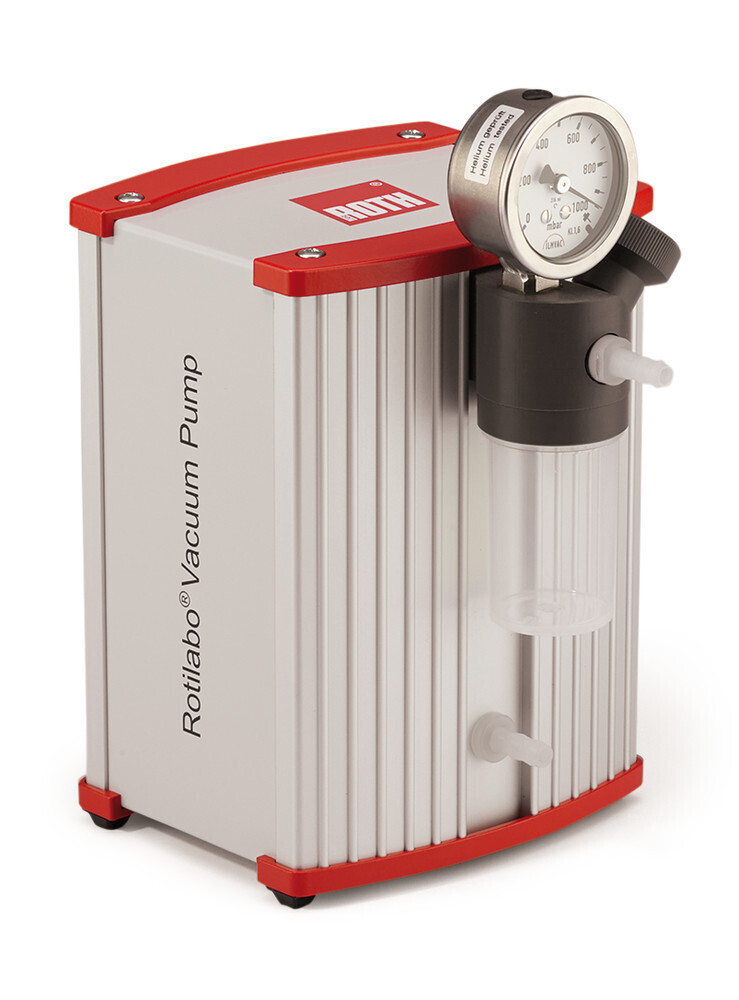

Diaphragm vacuum pump ROTILABO® CR-MV100, 1 piece
SKU ECK4.1
€ 929,40
In stock
1
Save this product for later
Diaphragm vacuum pump ROTILABO® CR-MV100, 1 piece
Product Details
HS code: 84148022
EAN: 8721028082602
Brand: Gardner Denver Thomas GmbH (Ehm.IImvac)
Chemical-resistant, for conveying and compressing neutral and aggressive gases and vapours in accordance with the resistance of the given materials. Vacuum is continuously variable via manual vacuum controller (needle valve).
Application:suitable for vacuum filtration, vacuum drying and solid phase extraction.
Diaphragm vacuum pump ROTILABO® CR-MV100
Delivery incl. vacuum metering block with pressure gauge and exhaust silencer.
Technical Information
| Type | CR-MV100 |
| Suction capacity (l/min) | 10 |
| Suction capacity (m³/h) | 1 |
| End vacuum (abs.) | 100 mbar |
| Measuring range | 1000-1 mbar |
| Graduation | 50 mbar |
| Overpressure | 2,5 bar |
| Media temperature | +10 - +60 °C |
| Connection | for hose inner Ø 6 mm |
| Motor power | 48 W |
| Ambient temperature | +10 - +40 °C |
| Materials in contact with media | seal: EPDM hose nozzle: PP valve: FKM diaphragm: PTFE-coated hose/separator: PVC pump head: PPS |
| W x D x H | 144 x 198 x 244 mm |
| Weight | 2,7 kg |
| Mains connection | 90-260 V, 50/60 Hz |
