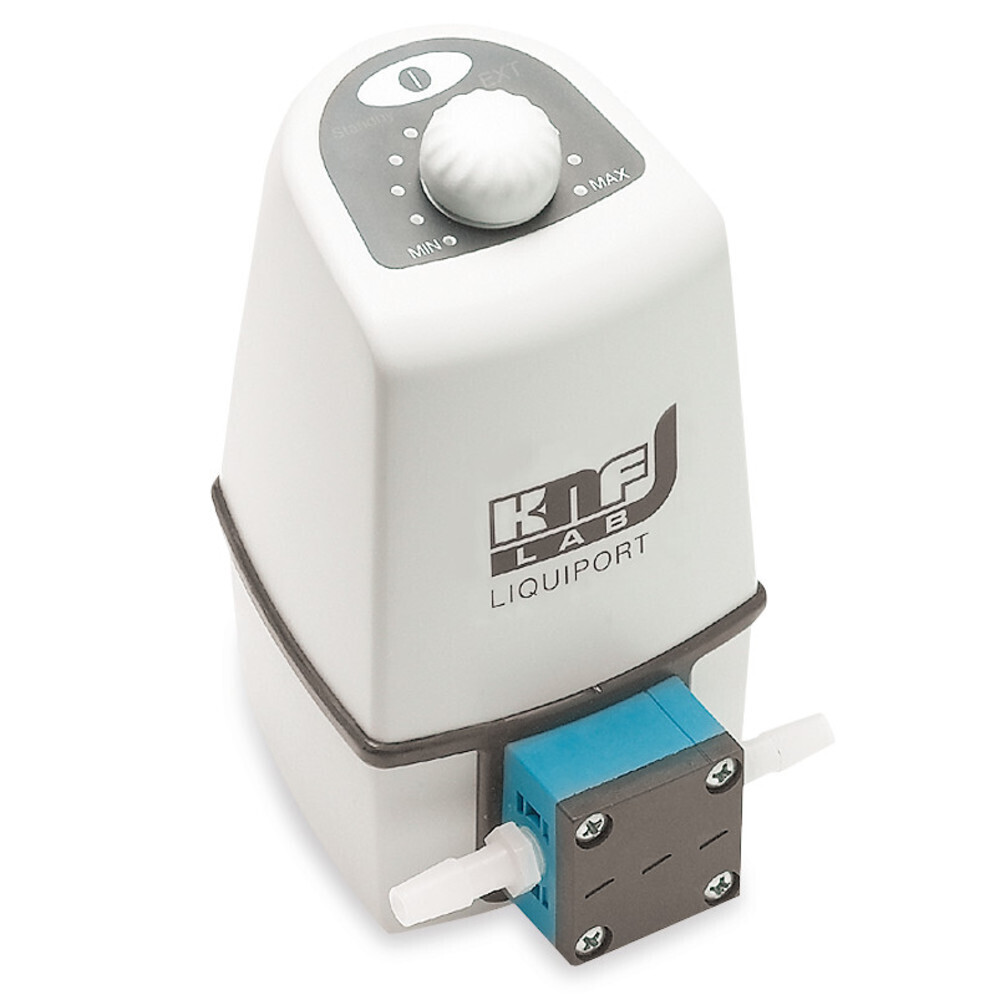

Diaphragm liquid pump LIQUIPORT® NF 100 version, NF 100 TT.18 S, pump head, PVDF, diaphragm, PTFE-coated, valves, FFKM, 1 piece
SKU EL63.1
€ 983,49
In stock
1
Save this product for later
Diaphragm liquid pump LIQUIPORT® NF 100 version, NF 100 TT.18 S, pump head, PVDF, diaphragm, PTFE-coated, valves, FFKM, 1 piece
Product Details
HS code: 84135080
EAN: 8721028051783
Brand: KNF
Suitable for pumping neutral and aggressive liquids (please take the chemical resistance of the pump head into account).
- The delivery rate can be adjusted within the 10-100% range via the rotary knob with LED display
- Standby mode
- Maximum pressure limit
- Self-priming
- Safe to run dry
- Long service life
Diaphragm liquid pump LIQUIPORT® NF 100 version
Technical Information
| Type | NF 100 TT.18 S |
| Delivery rate | 200-1300 ml/min |
| Suction lift | 3 nWC |
| Pressure lift | 10 nWC |
| Max. pressure | 1 bar |
| Media temperature | +5 - +80 °C |
| Connection | for hose inner Ø 8 mm |
| Motor power | 12 W |
| IP rating | 65 |
| Materials in contact with media | pump head: PVDF diaphragms: PTFE-coated valves: FFKM |
| W x D x H | 99 x 130 x 177 mm |
| Weight | 0.8 kg |
| Mains connection | 100-230 V, 50/60 Hz |
