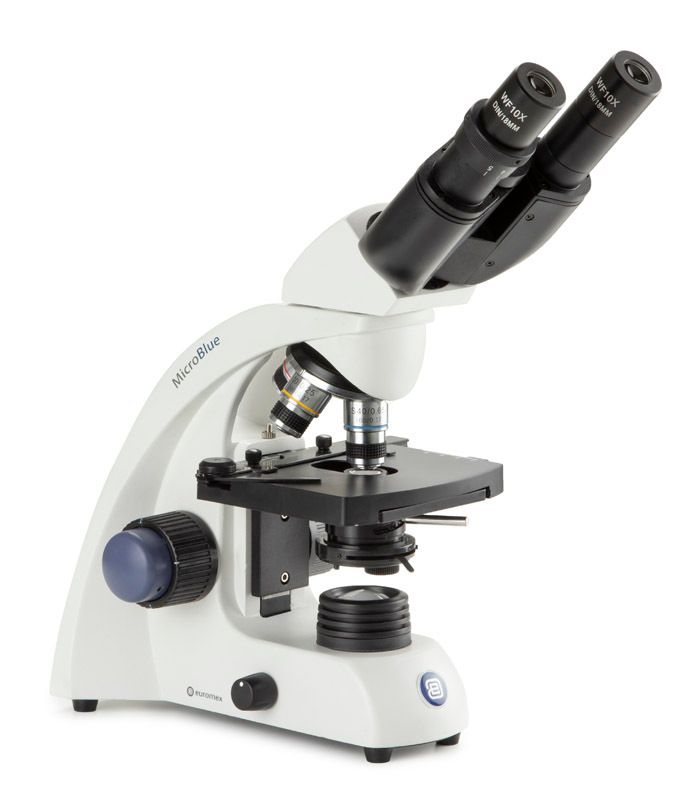

MicroBlue MB.1652 Biocular with 4/10/S40x/S60x objectives and cross stage

[tab name='Description']

Microscopes for education must be easy to use and able to withstand heavy-handed and frequent use. High-quality yet affordable Euromex microscopes mainly meet these needs thanks to the well-thought-out construction and the use of high-quality materials. The modern MicroBlue is an entry-level microscope and is especially attractive for customers with a limited budget. The basic model has a fixed condenser and a standard table. Models with an integrated cross table have an Abbe condenser. All models have 35mm achromatic lenses. The included rechargeable batteries enable wireless use.

[tab name='Technical Specifications ']

OCULAR(S)
• Wide-angle WF 10x/18 mm salvaged eyepiece(s) with pointing needle.
• The eyepieces of the binocular models are supplied without pointing needle

Monocular, Binocular, Trinocular, Digital Monocular and Digital LCD Head

HEAD
• Monocular models have 45° angled tube
• Binocular models have 45° inclined tube, adjustable interpupillary distance 48-75 mm and diopter adjustment ± 5 on the left tube
• Trinocular models have 30° inclined tube, adjustable interpupillary distance 48-75 mm and diopter adjustment ± 5 on the left tube
• The trinocular model has a 50:50 beam splitter and generates an upright image
• Two digital heads are available:
An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera , 1272 x 952 pixels
An integrated 5.0 MP 1/2.8” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels
• LCD version with 7” LCD screen
• All heads can be rotated 360°, except the LCD head

REVOLVER
Ball-bearing inverted revolver for three or four objectives

OBJECTIVES 35 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65 objectives. Models with S60X or S100x oil immersion lenses are also available
• The S40x, S60x and S100x oil immersion lenses have a spring mount

All lenses are treated against fungus and have an anti-fungal coating. -reflection coating for maximum light output

SHOP CONTROL
• Coaxial coarse and fine adjustment knobs, 200 divisions, 15 µm per division, 3 mm per rotation, 20 mm range.
• Adjustable specimen security

TABLE
All models have a 115 x 100 mm table with integrated 55 x 20 mm cross table, except for the basic model MB.1001 which is supplied supplied with 105 x 105 mm table and two non-removable object clamps

CONDENSER
Height-adjustable Abbe condenser NA 1.25 with iris diaphragm and filter holder, except for model MB.1001 which has a fixed NA 0.65 condenser with built-in iris diaphragm

• Warranty for the LCD screen is two years
