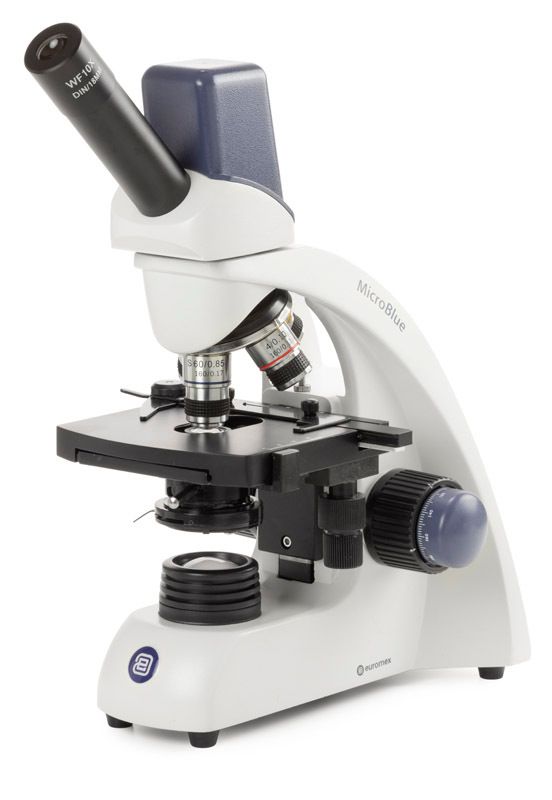

MicroBlue MB.1655-5 digital With 5 MP sensor and 4/10/S40x/S60x lenses

[tab name='Description']

Microscopes for education must be easy to use and able to withstand heavy-handed and frequent use. High-quality yet affordable Euromex microscopes mainly meet these needs thanks to the well-thought-out construction and the use of high-quality materials. The modern MicroBlue is an entry-level microscope and is especially attractive for customers with a limited budget. The basic model has a fixed condenser and a standard table. Models with an integrated cross table have an Abbe condenser. All models have 35mm achromatic lenses. The included rechargeable batteries enable wireless use

MicroBlue LCD

The MicroBlue is also available with a 7” LCD screen. These microscopes have all the features of the normal MicroBlue but are equipped with an LCD screen. This screen allows live viewing, saving images and videos and even has a simple line measurement. The HD LCD models can only be used as stand-alone

Features

• Entry-level model for education
• Mono, bino, trinocular models
• Standard, digital and LCD models
• Ball-bearing inverted revolver
• Equipped with APL (Anti-bacterial Protection Layer)
• Table with built-in XY cross table
• LED and NeoLED lighting
• Wireless working
• Ergonomic handle

[tab name='Technical Specifications']

OCULAR(S)
• Wide-angle WF 10x/18mm salvaged eyepiece(s) with pointing needle.
• The eyepieces of the binocular models are supplied without a pointing needle

< img alt="MB.trino_head_N" src="https://www.euromex.com/nl/uploads/files/images-S/MB.trino_head_N.jpg">

Monocular, binocular, trinocular, digital monocular and digital LCD head

HEAD
• Monocular models have 45° angled tube
• Binocular models have 45° angled tube, adjustable interpupillary distance 48-75 mm and diopter adjustment ± 5 on the left tube
• Trinocular models have 30° inclined tube, adjustable interpupillary distance 48-75 mm and diopter adjustment ± 5 on the left tube
• The trinocular model has a 50:50 beam splitter and generates an upright image
• There are two digital heads available:
An integrated 1.3 MP 1/2.5” CMOS sensor USB 2.0 camera, 1272 x 952 pixels
An integrated 5.0 MP 1/2.8” CMOS sensor USB 2.0 camera, 2560 x 1920 pixels
• LCD version with 7” LCD screen
• All heads can be rotated 360°, except the LCD head

REVOLVER
Ball-bearing inverted revolver for three or four lenses

OBJECTIVES 35 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65 objectives. Models with S60X or S100x oil immersion lenses are also available
• The S40x, S60x and S100x oil immersion lenses have a spring mount

All lenses are treated against fungus and have an anti-fungal coating. -reflection coating for maximum light output

SHOP CONTROL
• Coaxial coarse and fine adjustment knobs, 200 divisions, 15 µm per division, 3 mm per rotation, 20 mm range.
• Adjustable specimen security

TABLE
All models have a 115 x 100 mm table with integrated 55 x 20 mm cross table, except for the basic model MB.1001 which is supplied supplied with 105 x 105 mm table and two non-removable object clamps

CONDENSER
Height-adjustable Abbe condenser NA 1.25 with iris diaphragm and filter holder, except for model MB.1001 which has a fixed NA 0.65 condenser with built-in iris diaphragm

• Warranty for the LCD screen is two years
