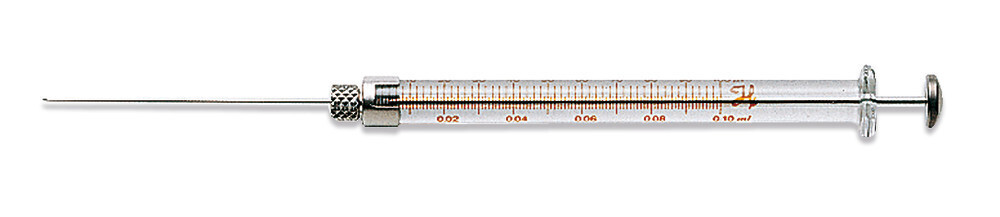

For dispensing liquids and gases. Glass body and piston are replaceable. With PTFE tips for sealing. Replaceable needle.
Technical specifications:
Correctness: ≤ ±1% of the nominal volume. Test pressure: 0.6 MPa. Operating temperature: -10 to +50 °C
Needle with 12° grinding, slightly bent inwards; for penetrating septa during all chromatographic methods.
| Type | 1701 RN |
| Vol. | 10 µl |
| Graduation | 0,1 µl |
| Inner needle Ø | 0.13 mm |
| Outer needle Ø | 0.47 mm |
| Needle length | 51 mm |
| Gauge | 26s G |
