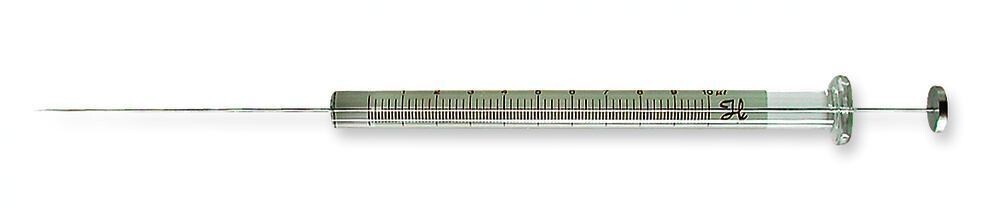

For dispensing liquids. The piston is ground in to the glass body and the needle is fixed in place.
Technical specifications:
Correctness: ≤ ±1% of the nominal volume. Test pressure: 0.6 MPa. Operating temperature: -10 to +50 °C
Needle with 12° grinding, slightly bent inwards; for penetrating septa during all chromatographic methods.
Type | 701 N |
Vol. | 10 µl |
Graduation | 0,1 µl |
Inner needle Ø | 0.13 mm |
Outer needle Ø | 0.47 mm |
Needle length | 51 mm |
Gauge | 26s G |
