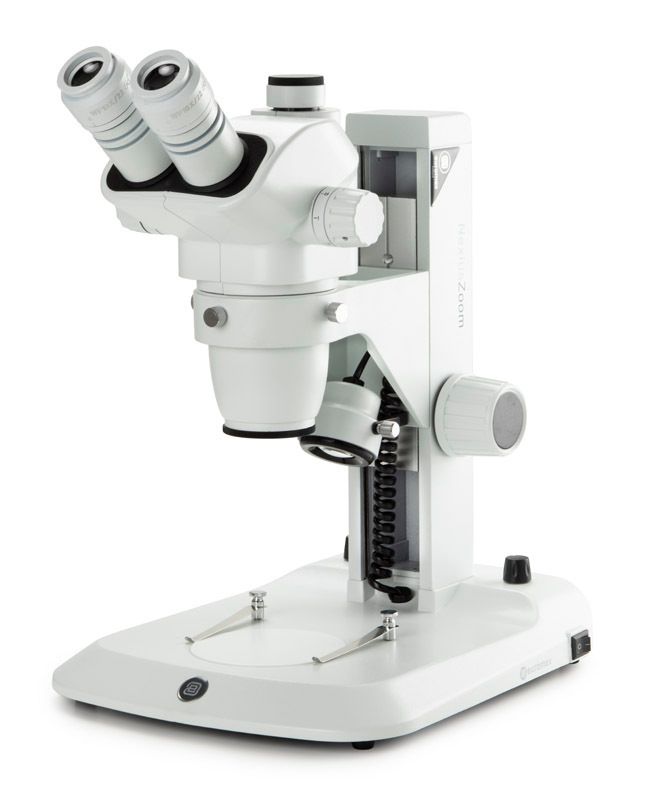

NexiusZoom ESD NZ.1903-S-ESD Triocular with toothed bracket tripod and 6.7x to 45x zoom

[tab name='Description']

The NexiusZoom stereo microscopes from Euromex produce high-quality two- and three-dimensional images of your specimen and are suitable for many demanding applications

The NexiusZoom stereo microscopes are available in different types of stands, with or without LED lighting. Ideal for a wide range of educational and laboratory applications. With attachment lenses and other eyepieces, magnifications of 3.3 to 180x can be achieved. These high-quality zoom ESD-safe microscopes are ideal for analyzing surfaces of different types of materials or for observing large objects in the electronics industry

[tab name='Technical Specifications']

OCULARS

HEAD
Binocular or trinocular heads with 45° inclined tube. Diopter adjustment of ± 5 is on both eyepieces. Adjustable eye relief between 54 mm and 75 mm

OBJECTIVE
Zoom 1:6.7 lens with magnifications from 0.67x to 4.5x. Fields of view from 33 mm to 4.9 mm. Working distance of 110 mm. Conversion lenses of 0.5x, 0.75x, 1.5x and 2.0x are available.

All lenses are treated against mold and have an anti-reflection coating for maximum light output

MAGNIFICATIONS
Working distances and fields of view with standard HWF 10x / 22 wide-angle eyepieces

WA = working distance

Tripod
Ergonomically designed column tripod or rack and pinion tripod with LED lighting, supplied with two object clamps and Ø 100 mm transparent and black/white microscope slides. The coarse control has a friction control. Ergonomically designed single-arm or double-arm swivel arm tripod, without lighting, is ideal for observing large objects and for working under the microscope. Suitable for ring lights LE.1972 and LE.1973 with 60 or 144 LEDs, among others. LE.1973 is adjustable per segment and therefore ideal for creating or eliminating shadows
More options for lighting (click here)

The stands are made of a metal alloy with a hard coating. ESD-safe models are also available

LIGHTING
3 W transmitted and incident LED lighting with internal power supply 100-240 V. Both lighting can be switched on simultaneously and the light intensity of both lights can be controlled individually

ESD SAFE MICROSCOPES< br>Specially for the electronics industry. Electrostatic discharge (ESD) is the unwanted, sudden electric current between two electrically charged objects. Electrostatic discharge can cause partial or permanent damage to electronic components. Euromex is therefore now introducing ESD safe microscopes in the NexiusZoom series. The tripod and head of the microscope are treated with a special ESD safe paint that eliminates electrostatic discharges and ensures that the microscope is suitable for all electrostatically sensitive environments

(ESD safe microscopes can be ordered with the suffix ESD, see the table below)

< div>

PACKAGING
Complete with plug, dust cover, spare fuse and manual. Everything packed in polystyrene packaging
