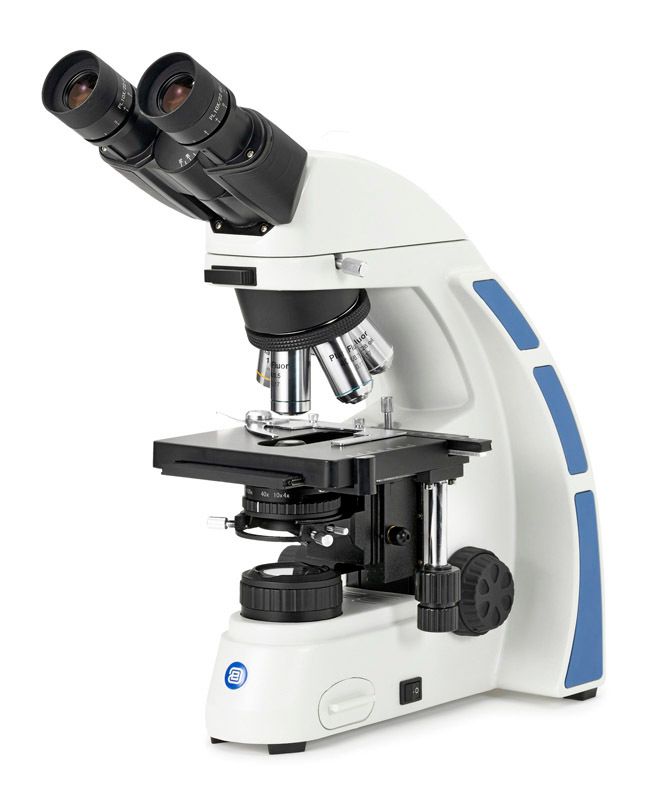

Oxion OX.3030 Binocular with Plan 4x/10x/S40x IOS objectives and Abbe condenser

Thanks to the high optical resolution and innovative components, these microscopes can be used for most examinations

Features

• HWF 10x/22mm eyepieces
• Bino and trinocular systems
• Optional tilting head
• Inverted revolver for up to 5 lenses
• Inverted revolver for up to 5 lenses
• li>
• Semi plan and plan IOS objectives
• 150 x 140 mm stage
• Optional ceramic stage
• 3 W LED lighting for bright field applications
• Ergonomic tripod and head
• Abbe condenser

[tab name='Technical Specifications']

OCULARS
• HWF 10X/22mm eyepieces with ± 5° diopter adjustments on both eyepieces.
• All eyepieces can be secured with an Allen screw

HEAD
• Binocular and trinocular Siedentopf heads with 30° inclined tube
• Adjustable eye relief between 50 and 75 mm< br>• A unique rotating system allows both eyepieces to be adjusted in height; high position (431 mm) and low position (397 mm)
• The multihead systems are available with two, three or five heads
• Ergonomic tilting head is available

REVOLVER
Inverted ball-bearing revolver for up to five lenses

OBJECTIVES - IOS INFINITELY CORRECTED SYSTEM
• Semi plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil -immersion IOS objectives
• Standard Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives, optional 20x/0.40 and S60x/0, 85 objectives
• Plan phase contrast S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Standard Plan semi apochromatic Fluarex 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives, optional 20x/0.50 objectives

All S40x, S60x and S100x oil immersion objectives have a spring mount
All lenses are treated against mold and have an anti-reflection coating for maximum light output

TABLE
Equipped with object clamps for two subjects

• 150 x 140 mm table with integrated 76 x 50 mm available together with new microscopes). Higher temperatures can be set upon special request

Bright-field CONDENSER
• Height-adjustable Abbe condenser NA 1.25 with iris diaphragm
• A dark-field disc in sled for use with 10x, 20x and S40x objectives can be can also be placed in the filter holder

FOCUS CONTROL
• Coaxial coarse and fine adjustment, 200 divisions, 1 μm per division, 200 μm per rotation, total range of approximately 28 mm
• Supplied with adjustable specimen protection to prevent damage to the specimen and the objectives
• Skid resistance control on the coarse adjustment

LIGHTING FOR BRIGHT FIELD

All models come with 3W adjustable NeoLED™ lighting with internal 100-240 V power supply. Köhler illumination with field diaphragm

STORAGE AND TRANSPORT

From left to right: OX.3011 - AE.9916

PACKAGING
Complete with plug, dust cover, spare fuse, manual and 5 ml immersion oil for models with an S100x lens.

All packed in polystyrene packaging
