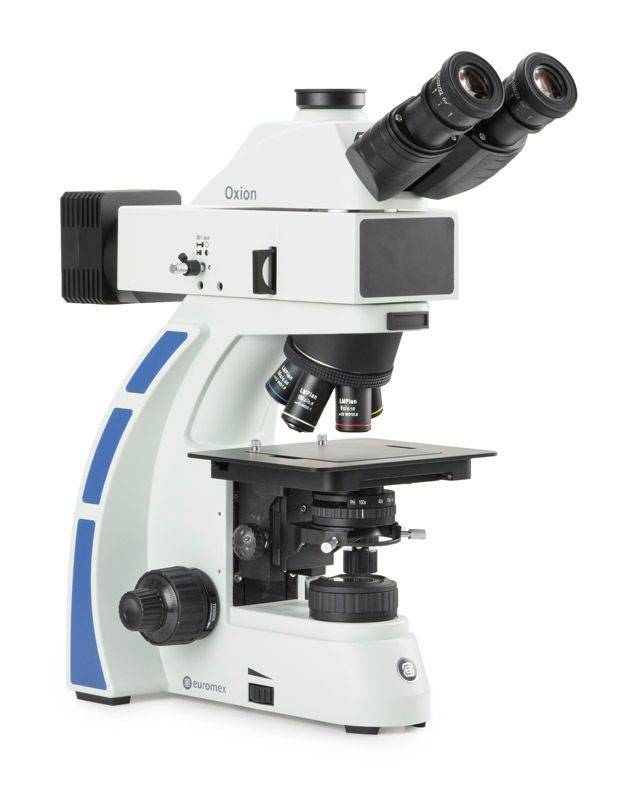

Oxion material sciences OX.3240 Triocular with M-IOS 5x/10x/20x/50x objectives

[tab name='Description']

The Oxion microscopes for materials research are specifically designed for observing different types of materials in research laboratories, universities or by professionals in the industrial market

Thanks to the high optical resolution and innovative components, these microscopes can be used for many applications

Features

• Trinocular models
• HWF 10x/22 mm eyepieces
• Inverted revolver for five objectives
• Plan M-iOS objectives
• Transmitted 3W NeoLED Lighting
• Striking 3W NeoLED Lighting
• Polarizer and Analyzer Filters

OCULARS
HWF 10x/22mm eyepieces. All eyepieces can be secured

HEAD
Trinocular Siedentopf head with 30° inclined tube. Adjustable eye relief between 48 and 75 mm. Diopter adjustment ± 5 on both eyepieces. A unique rotating system allows both eyepieces to be height-adjustable; high position (431 mm) and low position (397 mm)

REVOLVER
Inverted ball-bearing revolver for up to five lenses

OBJECTIVES (IOS-IINFINITY OPTICAL SYSTEM)
Standard configurations are equipped with infinity corrected DIN long working distance LWD plan M-IOS 5x/0.14, 10x/0.25 and plan semi apochromatic LWD 50x/0.55 and 100x/0.80 objectives

< em>All lenses are treated against fungus and have an anti-reflection coating for maximum light output

FOCUS CONTROL
• Coaxial coarse and fine adjustment knobs, 200 divisions, 1 μm per division, 200 μm per rotation, total reach of approximately 28 mm
• Supplied with adjustable specimen protection to prevent damage to the specimen and objectives and skid control on the coarse adjustment

TABLE
• 180 x 145 mm table with integrated 78 x 45 mm photo) and glass insert

A ceramic table is available on request

CONDENSER (FOR TRANSMITTED LIGHTING)
Height-adjustable NA 1.25 Abbe condenser with iris diaphragm and filter holder

TRANSLATED LIGHTING

All models are supplied with adjustable 3 W NeoLED lighting with internal 100-240 V power supply. Köhler lighting with field diaphragm

OBJECTIVE EPI ILLUMINATION

Adjustable 3 W Köhler NeoLED lighting with external 110-240 V power supply. Push-pull type 90° rotatable polarizer and fixed analyzer. Built-in condenser with field and iris diaphragm. Equipped with angled lighting option. Supplied with blue and green filters

(Photo: details of striking lighting)

PACKAGING

Complete with plug, dust cover, spare fuse and manual . All packed in polystyrene packaging
