Marker excellent for analysing PCR-fragments and for routine-analysis.
The 500 bp, 1000 bp and 1500 bp bands have been reinforced in their intensity for speedy and simple orientation. The special 1000 bp band allows the marker to be used for quantifying in gel.
Depending on the resolved segment, the marker changes its appearance (see figure).

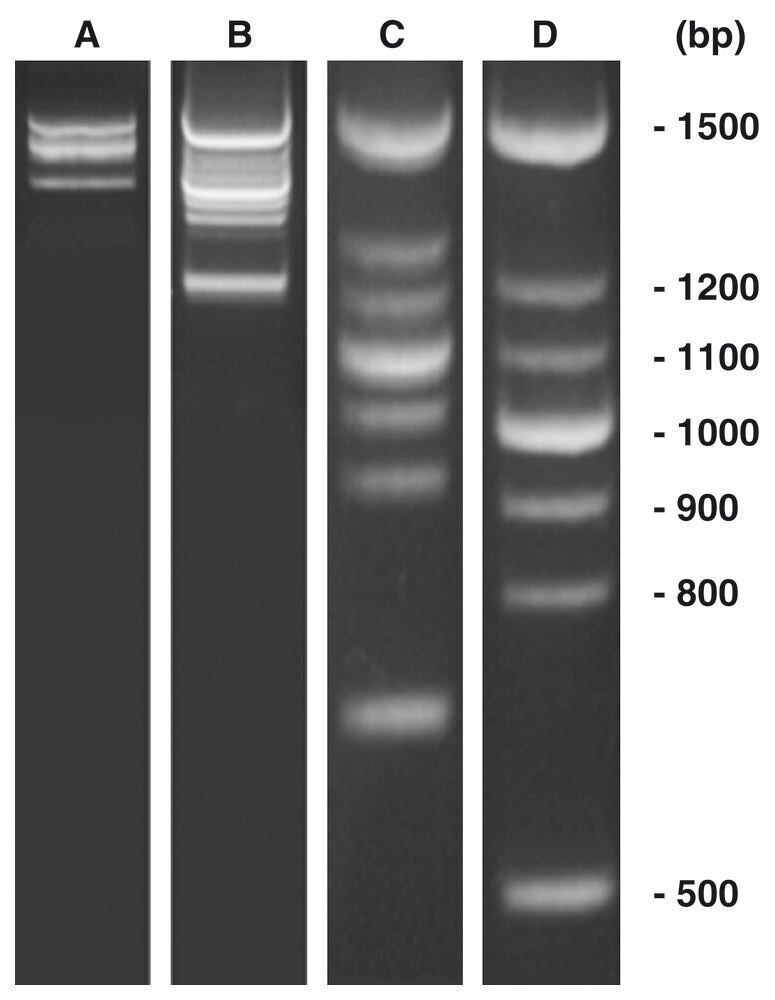

Fig.: A) 1,0 cm: The marker shows three bands (500 bp, 1000 bp, 1500 bp).
B) 1,5 cm: Four satellite bands flank the 1000-bp-band.
C) 3-4 cm: All bands are resolved. Efficient size analysis of fragments with a difference of 50 bp is possible.
D) 6-7 cm: The marker can also be used for quantfying after approx. 6 cm run: the 1000-bp-band corresponds to 140 ng DNA (when loading 0,5 μg DNA-marker).
Aantal fragmenten | 7 |
Aantal sporen | ~200/100 µg |
Groottebereik | 500-1500 bp |
Kwantificering | possible |
Verzending | lyophilized |
Versterkte bande bij | 500, 1000, 1500 bp |
Marker | PCR-Marker DNAscore | DNA-Marker short run 1 | DNA-Marker short run extended |
Art. No. | T917 (fig. 1) | 0146 (fig. 2) | CL05 (fig. 3) |
Size range (bp) | 500–1500 | 500–2500 | 100–6000 |
Number of fragments | 7 | 5 | 9 |
Reinforced bands at (bp) | 500, 1000, 1500 | 1500 | 1500 |
Quantitation | possible | possible | possible |
Number of lanes in minigel | 200 / 100 μg | 400 / 100 μg | 300 / 100 μg |
Delivery | lyophilised | lyophilised | lyophilised |
