Home/Store/Life Science/Electrophoresis/PAGE (Polyacrylamide gel electrophoresis)
Q-PAGE TGN Midi, 10 stuks

Q-PAGE TGN Midi, 10 stuks

SKU 3683.2
€ 240,43
In stock
1
Save this product for later
Q-PAGE TGN Midi, 10 stuks
Product Details
CAS number: 9004-53-9
Chemical formulas: (C6H10O5)n · x H2O
HS code: 38229000
Brand: SMOBIO

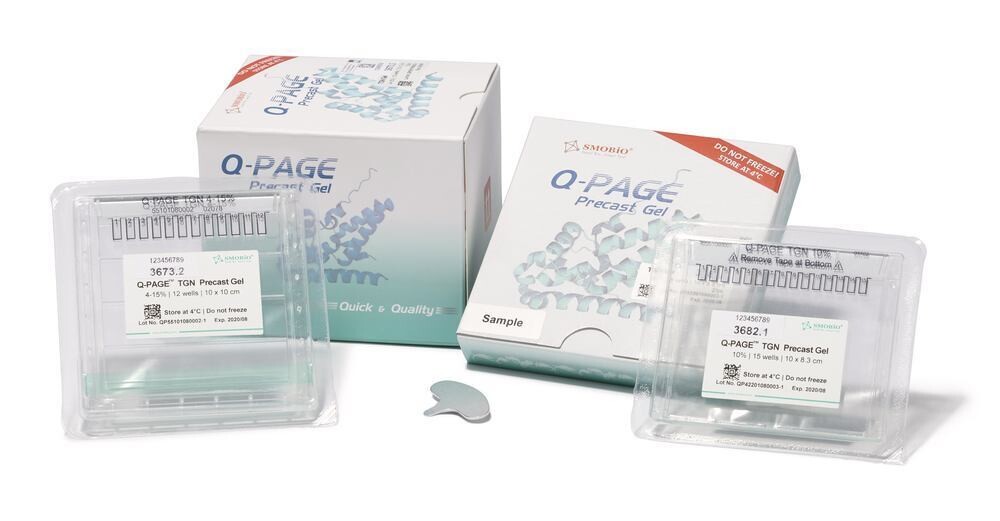

Q-PAGE(TM) 10 % TGN Midi, ready-to-use, 10 x 10 cm,, 10 % polyacrylamide, 12 wells, Density (D) ~1 g/cm³, Boiling point (bp) ~100 °C, Storage temp. +4 °C

Precast mini gels for rapid and easy gel electrophoresis in laboratory and students courses.

Q-PAGE™ TGN Precast Gels with optimised separating properties.

  • Compatibility - gel cassettes with the sizes Mini (10 x 8.3 cm) and Midi (10 x 10 cm), suitable for most mini-gel tanks
  • Easy to load samples - numbered wells with separators
  • Exceptionally fast separation - clear, sharp bands already after 30-40 minutes
  • Gel cassettes with comb to protect the gel pockets

  • Particularly long shelf life - up to 12 months from date of manufacture when stored at 4 °C
  • Wide separation range - available as homogeneous and adjusted gradient gels
  • Easy to monitor during the run - transparent reference lines on the gel cassette
  • Solid blister tray - for safe transport of the gels

TGN (Tris Glycine Novel) Precast Gels are ready-to-use acrylamide gels for SDS-PAGE running in Tris glycine buffer system. With unique formula, TGN Precast Gels perform enhanced resolution, sharper bands, and longer shelf life as compared with conventional Laemmli Tris-HCl gels.
The protein migration patterns in TGN series, however, are similar with typical Laemmli Tris-HCl gels, and thus TGN Precast Gels are compatible with traditional SDS-PAGE and all downstream applications.

Q-PAGE™ TGN Precast Gels are available in gradient (4 to 15 %) and fixed (10 %) concentrations of polyacrylamide in 12- and 15-well formats. Two available cassette sizes, Mini (W x L: 10 x 8.3 cm) and Midi (W x L: 10 x 10 cm).
All Q-PAGE™ TGN Precast Gels include 4 % polyacrylamide stacking gels. They are delivered sealed and preserved in Tris glycine buffer.


Compatibility:

Q-PAGE™ TGN Mini (10 x 8,3 cm):

• Bio-Rad® Mini PROTEAN® Tetra Cell
• Chambers of similar size of other manufacturers

Q-PAGE™ TGN Midi (10 x 10 cm):
• Roth PROclamp Mini (Art. No. 3501.1-3503.1)
• Roth Mini Vertikal (Art. No. Y001.1-Y004.1)
• Invitrogen® XCell SureLock® Mini-Cell
• Invitrogen® Mini Gel Tank
• Hoefer SE260
• Chambers of similar size of other manufacturers



Q-PAGE™ TGN Midi Q-PAGE™ 10 %, ready-to-use, 12 wells

Compatibility TGN Midi (10 x 10 cm):

  • Roth PROclamp Mini (Art. No. 3501.1-3503.1)
  • Roth Mini Vertikal (Art. No. Y001.1-Y004.1)
  • Invitrogen® XCell SureLock® Mini-Cell
  • Invitrogen® Mini Gel Tank
  • Hoefer SE260


Technische informatie
Gelsterkte 1 mm
Matrix 10 % polyacrylamide
Buffer/oplossing Tris glycine
Volume per uitsparing 40 µl

Safe
Acrylamide ia a strong nerve poison which has clearly proved to be carcinogenic and to change the genetic make-up during animal testing. Acrylamide is resorbed primarily through the skin. The formation of dust when working with the solid matter is particularly critical. A hazard which can be easily avoided by using the ROTIPHORESE® ready-to-use solution.

Superior quality
ROTIPHORESE® Acrylamide and -Bisacrylamide solutions from Carl ROTH have the highest purity level. They are produced from substances free from acrylic acid. Oxidation products are removed from the solution by a selective absorption process. A new formation of such and/or polymerisation of the solution is prevented by gaseous stabilisation of the solution.
In order to guarantee a high consistency of our ROTIPHORESE®-solutions, each batch undergoes electrophoretic testing.


Gel type Tris-Glycine Novel TGN
Gel matrix 10 % polyacrylamide
Buffer system Tris-Glycine
Cassette size (W x L) Midi (10 x 10 cm)
Gel strength 1 mm
Gel pockets 12
